Description
Description
? Design factor 4:1 proof tested and certified Tested acc. to EN 1677
Specification

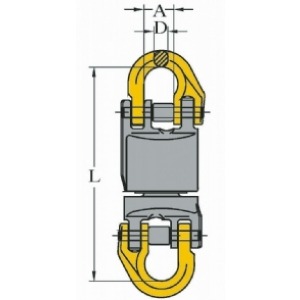

| Item No. | Working Load Limit |
For Grade 80 Chain(mm) | Dimensions (mm) | N.W. | ||
| tonnes* | mm | A | D | L | Kg | |
| 8-123-07 | 2.0 | 7, 8 | 18 | 9 | 131 | 0.7 |
| 8-123-10 | 3.15 | 10 | 25 | 11 | 162 | 1.5 |
| 8-123-13 | 5.3 | 13 | 30 | 16 | 214 | 3.2 |
| 8-123-16 | 8.0 | 16 | 36 | 19 | 243 | 5.4 |
| 8-123-20 | 12.5 | 18, 20 | 42 | 22 | 285 | 9.0 |
