Description
?YOKE Swivels are manufactured using the highest grade of material available.
?YOKE Swivels are designed with a safety factor of 5:1.
?YOKE Swivels are available in sizes from 3/4 tonnes to 25 tonnes.
?YOKE Swivels are available for wire lines 1/4″ to 1-1/2″.
?YOKE Swivels are zinc plated for corrosion resistance and longer life.
?YOKE Swivels are manufactured with grease fittings for superior performance.
?YOKE Swivels are designed for low starting torque and high rotation speed.
?All Swivels parts are 100% magnaflux crack detected.
?20,000 cycle fatigue rate to 1.5 times working load limit.
?All parts with batch number for quality certified and traceability.
? Minimum Ultimate Load is 5 times the Working Load Limit. Maximun Proof Load is 2 times the Working Load Limit.

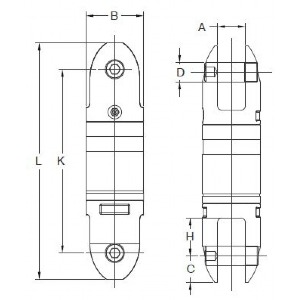

| Item No. | Wire Line Size | Working Load Limit | Dimensions (mm) | N.W. | ||||||
| mm | tons* | A | B | C | D | H | K | L | Kg | |
| 8-301-0075 | 6 | 0.75 | 15 | 32 | 12 | 10 | 22 | 103 | 126 | 0.5 |
| 8-301-015 | 10 | 1.5 | 18 | 40 | 16 | 11 | 26 | 112 | 144 | 0.8 |
| 8-301-03 | 13 | 3 | 23 | 51 | 23 | 16 | 31 | 159 | 203 | 2.0 |
| 8-301-05 | 16 | 5 | 32 | 64 | 31 | 22 | 37 | 200 | 262 | 4.0 |
| 8-301-085 | 19 | 8.5 | 37 | 76 | 35 | 25 | 50 | 242 | 312 | 6.7 |
| 8-301-10 | 22 | 10 | 42 | 102 | 46 | 38 | 53 | 317 | 408 | 18.2 |
| 8-301-15 | 25 | 15 | 48 | 108 | 46 | 38 | 56 | 317 | 408 | 21.0 |
| 8-301-25 | 32 | 25 | 62 | 132 | 61 | 51 | 69 | 374 | 495 | 36.5 |
| Item No. | Wire Line Size | Working Load Limit | Dimensions (inch) | N.W. | ||||||
| inch | tons* | A | B | C | D | H | K | L | lbs | |
| 8-301-0075 | 1/4 | 0.75 | 0.60 | 1.30 | 0.50 | 0.40 | 0.90 | 4.00 | 5.00 | 1.1 |
| 8-301-015 | 3/8 | 1.5 | 0.70 | 1.60 | 0.60 | 0.50 | 1.00 | 4.40 | 5.70 | 1.7 |
| 8-301-03 | 1/2 | 3 | 0.90 | 2.00 | 0.90 | 0.60 | 1.20 | 6.30 | 8.00 | 4.4 |
| 8-301-05 | 5/8 | 5 | 1.30 | 2.50 | 1.20 | 0.90 | 1.50 | 8.00 | 10.30 | 8.7 |
| 8-301-085 | 3/4 | 8.5 | 1.50 | 3.00 | 1.40 | 1.00 | 2.00 | 9.50 | 12.30 | 14.8 |
| 8-301-10 | 7/8 | 10 | 1.70 | 4.00 | 1.80 | 1.50 | 2.10 | 12.50 | 16.00 | 40.0 |
| 8-301-15 | 1 | 15 | 2.00 | 4.30 | 1.80 | 1.50 | 2.20 | 12.50 | 16.00 | 46.2 |
| 8-301-25 | 1 1/2 | 25 | 2.50 | 5.20 | 2.40 | 2.00 | 2.70 | 14.70 | 19.50 | 80.5 |
