Description
Description
?Shackles are forged carbon steel with alloy pin. ?Size and Working Load Limit permanently shown on each shackle. ?All shackles with Batch Code which links to Test Certificate and quality traceability. ?100% magnaflux crack detection during manufacturing. ?20,000 cycle fatigue rated to 1.5 times Working Load Limit. ? Minimum Ultimate Load is 6 times the W orking Load Limit. Maximun Proof Load is 2 times the W orking Load Limit.
Specification

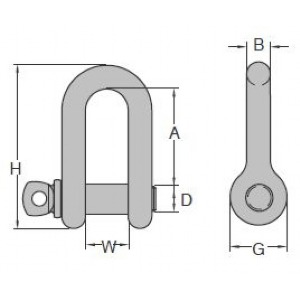

| Item No. | Nominal Size | Working Load Limit | Dimensions (mm) | N.W. | |||||
| inch | tonnes* | A | B | D | G | H | W | Kg | |
| 8-834-08 | 5/16 | 0.75 | 31 | 8 | 9.5 | 19 | 52 | 13 | 0.1 |
| 8-834-10 | 3/8 | 1 | 36 | 10 | 11 | 23 | 63 | 16 | 0.1 |
| 8-834-11 | 7/16 | 1.5 | 43 | 11 | 13 | 27 | 74 | 19 | 0.2 |
| 8-834-13 | 1/2 | 2 | 57 | 13 | 16 | 30 | 83 | 20 | 0.3 |
| 8-834-16 | 5/8 | 3.25 | 51 | 16 | 19 | 38 | 96 | 27 | 0.6 |
| 8-834-19 | 3/4 | 4.75 | 71 | 19 | 22 | 46 | 126 | 33 | 1.0 |
| 8-834-22 | 7/8 | 6.5 | 87 | 22 | 26 | 53 | 148 | 38 | 1.5 |
| 8-834-26 | 1 | 8.5 | 95 | 26 | 28 | 60 | 166 | 44 | 2.2 |
| 8-834-28 | 1 1/8 | 9.5 | 108 | 28 | 32 | 68 | 190 | 46 | 3.0 |
| 8-834-32 | 1 1/4 | 12 | 100 | 32 | 36 | 76 | 188 | 52 | 4.2 |
| 8-834-36 | 1 3/8 | 13.5 | 115 | 36 | 38 | 84 | 212 | 57 | 5.7 |
