Description
Description
ROV: Remote Operated Vehicle ?YOKE ROV hooks are designed specifically for ROV application. ?YOKE ROV hooks are manufactured with the highest quality steel available. ?YOKE ROV hooks are painted white to ensure ease of sight in water. ? Minimum Ultimate Load is 4 times the Working Load Limit. Maximun Proof Load is 2 times the Working Load Limit.
Specification

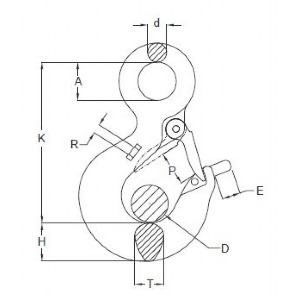

| Item No. | Working Load Limit | Dimensions (mm) | N.W. | ||||||||
| tonnes* | A | D | d | E | H | K | P | R | T | Kg | |
| 8-921-03 | 3.0 | 32 | 25 | 15 | 20 | 29 | 122 | 25 | 8 | 24 | 1.0 |
| 8-921-05 | 5.0 | 40 | 31 | 18 | 20 | 37 | 149 | 31 | 8 | 31 | 2.1 |
| 8-921-07 | 7.0 | 51 | 39 | 24 | 20 | 46 | 192 | 39 | 8 | 37 | 4.0 |
| 8-921-11 | 11.0 | 62 | 57 | 28 | 30 | 58 | 232 | 57 | 8 | 48 | 7.0 |
| 8-921-15 | 15.0 | 72 | 62 | 32 | 30 | 66 | 256 | 62 | 8 | 56 | 9.4 |
| 8-921-22 | 22.0 | 90 | 81 | 40 | 50 | 77 | 318 | 81 | 10 | 68 | 18.6 |
| 8-921-30 | 30.0 | 90 | 83 | 45 | 50 | 92 | 357 | 83 | 10 | 76 | 31.2 |
| Item No. | Working Load Limit | Dimensions (inch) | N.W. | ||||||||
| tonnes* | A | D | d | E | H | K | P | R | T | lbs | |
| 8-921-03 | 3.0 | 1.26 | 0.98 | 0.59 | 0.78 | 1.14 | 4.80 | 0.98 | 0.31 | 0.95 | 2.2 |
| 8-921-05 | 5.0 | 1.57 | 1.22 | 0.71 | 0.78 | 1.46 | 5.87 | 1.22 | 0.31 | 1.22 | 4.6 |
| 8-921-07 | 7.0 | 2.00 | 1.54 | 0.95 | 0.78 | 1.82 | 7.56 | 1.54 | 0.31 | 1.46 | 8.8 |
| 8-921-11 | 11.0 | 2.44 | 2.24 | 1.10 | 1.18 | 2.28 | 9.13 | 2.24 | 0.31 | 1.89 | 15.4 |
| 8-921-15 | 15.0 | 2.84 | 2.44 | 1.26 | 1.18 | 2.60 | 10.10 | 2.44 | 0.31 | 2.20 | 20.7 |
| 8-921-22 | 22.0 | 3.54 | 3.19 | 1.57 | 1.96 | 3.01 | 12.50 | 3.19 | 0.39 | 2.68 | 40.9 |
| 8-921-30 | 30.0 | 3.54 | 3.27 | 1.77 | 1.96 | 3.62 | 14.10 | 3.27 | 0.39 | 2.99 | 68.6 |
