Description
Bridon Dyform® 18 is a compacted rotation resistant rope construction consisting of a inner part with an outer layer of strands spun in the opposite direction.

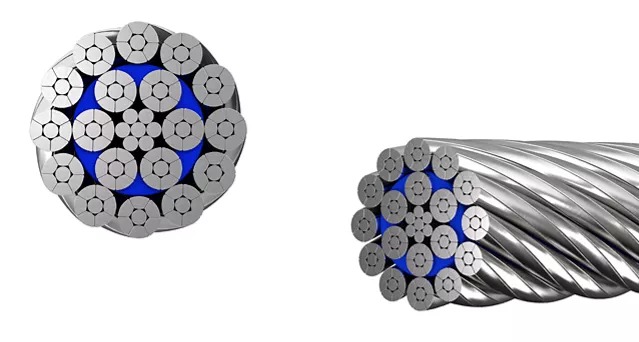

Bridon Dyform® 18 PI is a high performance compacted rotational resistant rope which incorporates a plastic layer between the inner and outer part of the rope.
Applications
- Main Hoist Ropes
- Auxiliary Hoist Ropes
Advantages
- Rotation Resistant
- Improved bend fatigue performance
- Robust and stable rope construction
- High category breaking strength
- Good wear characteristics due to its smooth exterior profile
Features
CompactionDyform
CoreIWRC, PI
Steel Grades1960 or 2160
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised
Bridon Dyform® 18 / 18 PI specification
Note for more detailed information please download the brochure above.
| Diameter | Approx Mass | Minimum Breaking Force Rope Grade | |||
| WS | EEIP/2160 | ||||
| in | mm | lb/ft | kg/m | tons | kN |
| 3/8 | 0.281 | 0.42 | 8.31 | 73.9 | |
| 10 | 0.336 | 0.50 | 9.49 | 84.4 | |
| 11 | 0.407 | 0.61 | 11.7 | 104 | |
| 7/16 | 0.415 | 0.62 | 11.2 | 100 | |
| 12 | 0.484 | 0.72 | 13.7 | 122 | |
| 1/2 | 0.542 | 0.81 | 14.6 | 130 | |
| 13 | 0.568 | 0.85 | 16.1 | 143 | |
| 14 | 0.659 | 0.98 | 18.5 | 165 | |
| 9/16 | 0.686 | 1.02 | 19.3 | 172 | |
| 5/8 | 16 | 0.847 | 1.26 | 22.7 | 202 |
| 18 | 1.09 | 1.62 | 30.8 | 274 | |
| 3/4 | 19 | 1.22 | 1.82 | 32.4 | 288 |
| 20 | 1.34 | 1.99 | 37.9 | 337 | |
| 22 | 1.63 | 2.43 | 46.8 | 416 | |
| 7/8 | 1.66 | 2.47 | 46.8 | 416 | |
| 24 | 1.94 | 2.89 | 54.6 | 486 | |
| 1 | 2.17 | 3.23 | 57.5 | 512 | |
| 26 | 2.27 | 3.38 | 64.1 | 570 | |
| 28 | 2.63 | 3.91 | 74.3 | 661 | |
| 1 1/8 | 2.74 | 4.08 | 71.5 | 636 | |
| 1 1/4 | 32 | 3.39 | 5.04 | 87.9 | 782 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
