Description

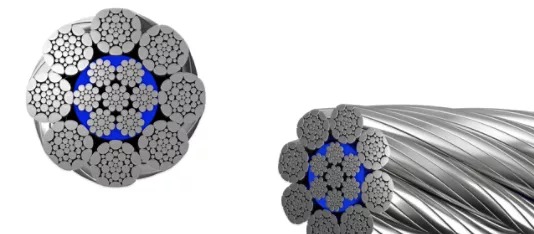

Bridon Dyform® 8 MAX our is a high performance double compacted single layer constructed rope with 8 outer strands. Our MAX technology increases breaking strength, durability & sheave are contact.
Our Dyform 8 MAX ropes are offered with both PI® technology. These technologies are designed to extend the life of your steel wire rope and ensure maximum productivity of your equipment.
A versatile eight strand rope for crane applications
Polymer enhancements
Dyform 8 MAX PI®
Plastic Impregnation
Reduce bend fatigue and improve core service life with plastic injection technology.
Applications
- Construction Cranes
- Port Cranes
- Industrial Cranes
Advantages
- Good bending fatigue performance
- Very flexible rope construction
- Smooth profile created by the number of outer strands
Downloads
Features
Bridon Dyform® 8 MAX/PI specification
Note for more detailed information please download the brochure above.
| Diameter | Approx mass WSC |
Max breaking force EIP/1960 |
|||
|---|---|---|---|---|---|
| inch | mm | lb/ft | kg/m | tons | kN |
| 24.0 | 1.96 | 2.92 | 61.1 | 544 | |
| 1 | 2.15 | 3.20 | 64 | 569 | |
| 26.0 | 2.27 | 3.38 | 71.8 | 639 | |
| 28.0 | 2.64 | 3.93 | 83.3 | 741 | |
| 1 1/8* | 2.75 | 4.09 | 86.9 | 773 | |
| 30.0 | 3.03 | 4.51 | 95.7 | 851 | |
| 1 1/4 | 32.0 | 3.65 | 5.43 | 109 | 970 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
