Description
Bridon Marblue® Trawl wires have large outer wires for increased wear and abrasion resistance.
Applications
- Trawl Warps
Advantages
- Large outer wire for increased abrasion resistance
- IWRC for high strength
Downloads
Features
Compaction–
CoreIWRC
Steel Grades1770, 1960 or 2160
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised

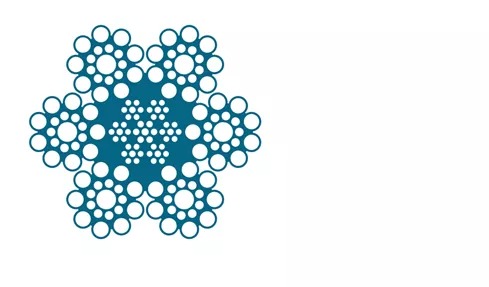

Bridon Marblue® IWRC specification
Note for more detailed information please download the brochure above.
| Diameter | Weight | Minimum breaking load | |
| mm | kg/100 mtr | Tonnes | kN |
| 14 | 82.7 | 12.6 | 123 |
| 16 | 102 | 16.1 | 157 |
| 18 | 128.9 | 20.3 | 199 |
| 20 | 164.6 | 25.1 | 246 |
| 22 | 199.7 | 30.4 | 298 |
| 24 | 235.4 | 36.1 | 354 |
| 26 | 276.9 | 42.4 | 416 |
| 27 | 294.9 | 45.7 | 448 |
| 28 | 318.9 | 49.2 | 482 |
| 30 | 383.2 | 56.4 | 554 |
| 32 | 411 | 64.2 | 630 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
