Bridon® Marblue PolyCore

Category: Brand:

Description

Bridon Marblue® PolyCore Trawl wires have large outer wires for increased wear and abrasion resistance.

Applications

Applications

  • Trawl Warps
Advantages

Advantages

  • Large outer wire for increased abrasion resistance
  • Fibre core provides increased flexibility
Features

Features

Compaction

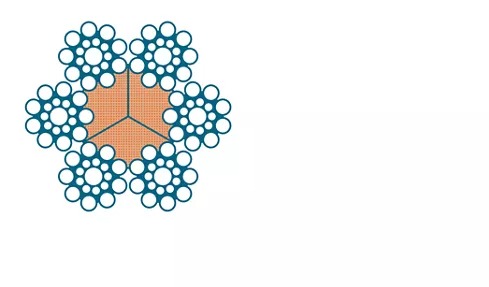

CorePolycore
Steel Grades1770, 1960 or 2160
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised

Bridon Marblue® PolyCore specification

Note for more detailed information please download the brochure above.

Diameter Weight Minimum breaking load
mm kg/100 mtr Tonnes kN
14 70.3 10.4 102
16 90.9 14.9 146
18 116.8 18.8 185
20 144.2 23.2 228
22 175.1 25.6 276
24 205.4 33.5 328
26 241.4 39.3 385
27 261.8 42.4 416
28 279.2 45.6 447
30 315.6 52.3 513
32 370 59.5 584



This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
