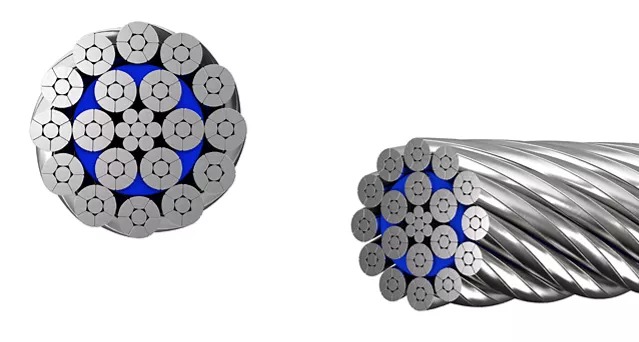

Bridon® Tiger 18M/PI

Bridon® Tiger 18M/PI

Category: Brand:

Description

The Bridon Tiger® 18M balance rope with a two Layer construction over a WSC. This rotation resistant rope can be impregnated with plastic (PI) for a better corrosion resistance.

Applications

Applications

  • Parallel Drum Hoist
  • Blair Hoist
Advantages

Advantages

  • Rotation resistant
  • Robust construction
  • PI – Corrosion resistance
Features

Features

CompactionDyform
CoreIWRC, PI
Steel Grades1770, 1960 or 2160
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised

Bridon Tiger® 18M/PI specification

Note for more detailed information please download the brochure above.

Diameter Approx. Mass Calculated Aggregate Breaking Force Calculated Minimum Breaking Force
1570 N/mm2 1770 N/mm2 1960 N/mm2 1570 N/mm2 1770 N/mm2 1960 N/mm2
mm kg/m kN kN kN kN kN kN
16 1.25 222 251 278 178 201 222
17 1.42 251 283 314 201 226 251
18 1.59 282 318 352 225 254 281
19 1.77 314 354 392 251 283 313
20 1.96 348 392 434 278 314 347
21 2.17 384 432 479 307 346 383
22 2.38 421 475 526 337 380 420
23 2.60 460 519 575 368 415 460
24 2.83 501 565 626 401 452 500
25 3.07 544 613 679 435 490 543
26 3.32 588 663 734 470 530 587
27 3.58 634 715 792 507 572 634
28 3.85 682 769 852 546 615 681
29 4.13 732 825 914 585 660 731
30 4.42 783 883 978 626 706 782
31 4.72 836 943 1040 669 754 835
32 5.03 891 1000 1110 713 804 890
33 5.35 948 1060 1180 758 855 947
34 5.68 1000 1130 1250 805 907 1000
35 6.02 1060 1200 1330 853 962 1060
36 6.37 1120 1270 1400 902 1010 1120
37 6.73 1190 1340 1480 953 1070 1190
38 7.10 1250 1410 1560 1000 1130 1250
39 7.48 1320 1490 1650 1050 1190 1320
40 7.90 1380 1560 1730 1110 1250 1380
41 8.30 1450 1640 1820 1160 1310 1450
42 8.72 1530 1720 1910 1220 1380 1520
43 9.14 1600 1800 2000 1280 1440 1600
44 9.57 1670 1890 2090 1340 1510 1670
45 10.00 1750 1980 2190 1400 1580 1750
46 10.40 1830 2060 2290 1460 1650 1830
47 10.90 1910 2160 2390 1530 1720 1910
48 11.30 1990 2250 2490 1590 1800 1990
49 11.80 2080 2340 2600 1660 1870 2080
50 12.30 2160 2440 2700 1730 1950 2160
51 12.80 2250 2540 2810 1800 2030 2250
52 13.30 2340 2640 2920 1870 2110 2340
53 13.80 2430 2740 3040 1940 2190 2430
54 14.40 2530 2850 3150 2020 2280 2520



This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
