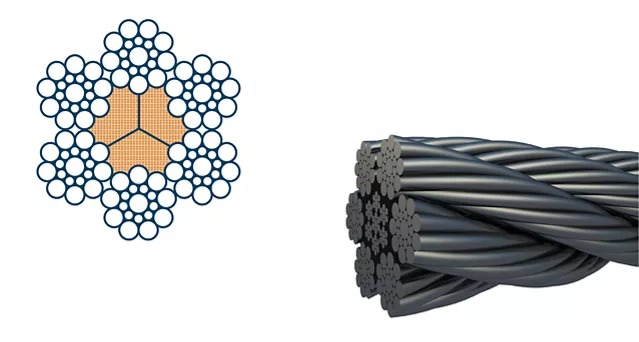

Bridon® Tiger 6R

Bridon® Tiger 6R

Category: Brand:

Description

Bridon Tiger® 6R is the most common used rope on friction winders with reliable performance.

Applications

Applications

  • Haulage Ropes
Advantages

Advantages

  • Proven performance
  • Well known for maintenance
  • Flexible
  • Robust due to big outer wires
Features

Features

Compaction–
CoreFibre core
Steel Grades1770, 1860 or 1960
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised

Bridon Tiger® 6R 6×36 (WS) specification

Note for more detailed information please download the brochure above.



Diameter Approx. Mass Calculated Aggregate Breaking Force Calculated Minimum Breaking Force
1570 N/mm2   1770 N/mm2   1960 N/mm2   1570 N/mm2 1770 N/mm2 1960 N/mm2
mm kg/m kN kN kN kN kN kN
22 1.86 317 357 396 276 311 344
23 2.04 347 391 433 301 340 376
24 2.22 377 425 471 328 370 410
25 2.41 409 462 511 356 402 445
26 2.60 443 499 553 385 434 481
27 2.81 478 539 597 416 469 519
28 3.02 514 579 642 447 504 558
29 3.24 551 621 688 479 541 599
30 3.47 590 665 737 513 579 641
31 3.70 630 710 787 548 618 684
32 3.94 671 757 838 584 658 729
33 4.19 714 805 891 621 700 775
34 4.45 758 854 946 659 743 823
35 4.72 803 905 1000 699 788 872
36 4.99 850 958 1060 739 833 923
37 5.27 898 1010 1120 781 880 975
38 5.56 947 1060 1180 824 929 1020
39 5.86 997 1120 1240 868 978 1080
40 6.17 1040 1180 1310 913 1020 1130
41 6.48 1100 1240 1370 959 1080 1190
42 6.80 1150 1300 1440 1000 1130 1250
43 7.13 1210 1360 1510 1050 1180 1310
44 7.46 1270 1430 1580 1100 1240 1370
45 7.8 1320 1490 1650 1150 1300 1440
46 8.2 1380 1560 1730 1200 1360 1500
47 8.5 1440 1630 1800 1260 1420 1570
48 8.9 1510 1700 1880 1310 1480 1640
49 9.3 1570 1770 1960 1370 1540 1710
50 9.6 1630 1840 2040 1420 1600 1780
51 10.0 1700 1920 2130 1480 1670 1850
52 10.4 1770 1990 2210 1540 1730 1920
53 10.8 1840 2070 2300 1600 1800 2000
54 11.2 1910 2150 2380 1660 1870 2070
55 11.6 1980 2230 2470 1720 1940 2150
56 12.0 2050 2310 2560 1780 2010 2230
57 12.5 2130 2400 2660 1850 2090 2310
58 12.9 2200 2480 2750 1910 2160 2390
59 13.4 2280 2570 2850 1980 2230 2480
60 13.8 2360 2660 2940 2050 2310 2560
61 14.3 2440 2750 3040 2120 2390 2650
62 14.8 2520 2840 3140 2190 2470 2730
63 15.3 2600 2930 3250 2260 2550 2820
64 15.6 2680 3020 3350 2330 2630 2910
65 16.2 2770 3120 3460 2410 2710 3010
66 16.7 2850 3220 3560 2480 2800 3100



This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.

Bridon Tiger® 6R 6×19 (S) specification

Note for more detailed information please download the brochure above.



Diameter   Approx. Mass   Calculated Aggregate Breaking Force Calculated Minimum Breaking Force
1570 N/mm2 1770 N/mm2 1960 N/mm2 1570 N/mm2 1770 N/mm2 1960 N/mm2
mm kg/m kN kN kN kN kN kN
16 0.95 163 183 203 141 160 177
17 1.08 184 207 229 160 180 200
18 1.21 206 232 257 179 202 224
19 1.35 230 259 287 200 225 249
20 1.49 254 287 318 221 250 276
21 1.64 281 316 350 244 275 305
22 1.81 308 347 385 268 302 335
23 1.97 337 380 420 293 330 366
24 2.15 367 413 458 319 360 398
25 2.33 398 449 497 346 390 432
26 2.52 430 485 537 374 422 467
27 2.72 464 523 580 404 455 504
28 2.93 499 563 623 434 490 542
29 3.14 536 604 669 466 525 582
30 3.36 573 646 716 499 562 623
31 3.59 612 690 764 532 600 665
32 3.82 652 735 814 567 640 708
33 4.07 694 782 866 603 680 753
34 4.32 736 830 919 641 722 800
35 4.58 780 880 974 679 765 848
36 4.84 826 931 1030 718 810 897
37 5.12 872 983 1080 759 855 947
38 5.40 920 1030 1140 800 902 999
39 5.68 969 1090 1210 843 950 1050
40 5.98 1010 1140 1270 887 1000 1100
41 6.28 1070 1200 1330 932 1050 1160
42 6.59 1120 1260 1400 978 1100 1220



This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
