Description

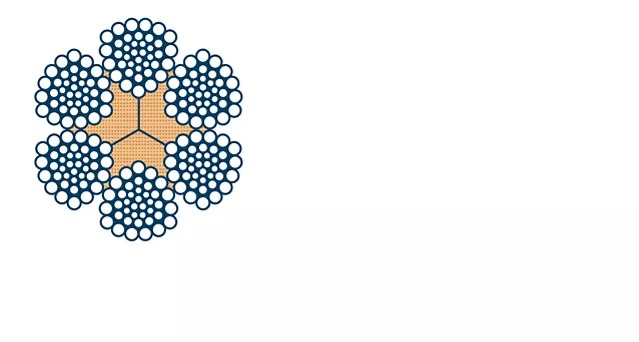

The Bridon Tiger® 6T Compound Bristar® are the most commonly used rope construction for shaft hoisting. Excellent performance on ultra-deep drum winders and most robust rope on friction winders. Advanced diameter stability and lifetime with a Bristar® core.

Applications

• Blair Hoist
• Haualge rope
• Parallel Drum Hoist

Advantages

• Robust rope on drum and friction winders
• Reduced sheave and lining wear
• High strength
• Advanced diameter stability and lifetime
• Best choice for ultra-deep hoisting

Downloads

• Underground Mining Catalogue

Features

CompactionDyform

CoreFibre core

Steel Grades1570, 1770 or 1960

Lay typeLangs lay or Regular lay

Lay DirectionRH or LH

FinishBright or Galvanised

Bridon Tiger® 6T Compound specification

^{Note for more detailed information please download the brochure above.}



Diameter	Approx. Mass	Calculated Aggregate Breaking Force				Calculated Minimum Breaking Force
		1570 N/mm²	1770 N/mm²	1960 N/mm²	2160 N/mm²	1570 N/mm²	1770 N/mm²	1960 N/mm²	2160 N/mm²
mm	kg/m	kN	kN	kN	kN	kN	kN	kN	kN
28	3.40	563	625	685	–	484	538	589	–
29	3.61	597	664	727	–	514	571	625	–
30	3.93	649	721	790	–	558	620	679	–
31	4.13	683	758	830	–	587	652	713	–
32	4.45	738	820	897	–	634	705	772	–
33	4.67	771	857	938	–	663	737	807	–
34	4.98	824	916	1003	–	709	787	862	–
35	5.30	877	974	1066	–	754	838	917	–
36	5.64	933	1036	1135	–	802	891	976	–
37	5.88	971	1078	1181	–	835	927	1015	–
38	6.23	1030	1144	1253	–	886	984	1077	–
39	6.61	1096	1218	1333	–	943	1047	1146	–
40	6.98	1157	1285	1407	–	995	1105	1210	–
41	7.28	1204	1338	1465	–	1035	1150	1259	–
42	7.57	1253	1392	1524	–	1077	1197	1310	–
43	8.05	1333	1482	1622	–	1147	1274	1395	–
44	8.38	1387	1541	1687	1841	1192	1325	1451	1583
45	8.79	1456	1618	1772	1933	1252	1391	1524	1663
46	9.13	1512	1680	1839	2006	1300	1444	1581	1725
47	9.46	1569	1742	1907	2081	1349	1498	1640	1789
48	10.00	1659	1843	2017	2201	1427	1585	1735	1893
49	10.45	1735	1927	2110	2303	1492	1658	1815	1980
50	10.85	1800	2000	2189	2388	1548	1720	1882	2054
51	11.26	1866	2073	2269	2476	1605	1783	1951	2129
52	11.88	1969	2187	2395	2613	1693	1881	2059	2247
53	12.23	2028	2253	2468	2694	1744	1938	2122	2317
54	12.67	2098	2331	2553	2786	1804	2005	2195	2396
55	12.95	2146	2384	2610	2848	1845	2050	2244	2449
56	13.41	2218	2464	2697	2943	1907	2119	2319	2531
57	14.05	2330	2588	2834	3093	2003	2226	2437	2660
58	14.53	2405	2672	2925	–	2068	2298	2516	–
59	14.97	2481	2756	3018	–	2134	2370	2595	–
60	15.46	2559	2842	3111	–	2200	2444	2676	–
61	15.92	2638	2929	3207	–	2268	2519	2758	–
62	16.66	2759	3065	3356	–	2373	2636	2886	–
63	16.91	2799	3108	3402	–	2407	2673	2926	–
64	17.68	2924	3248	3555	–	2515	2793	3058	–
65	18.41	3056	3394	3716	–	2628	2919	3195	–



^{This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.}
