Description

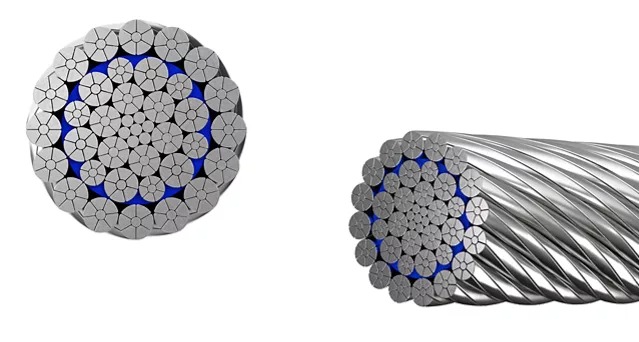

Roller compacted Bridon Tiger Dyform® 34LR MAX offering the highest strength with excellent spooling properties on multi-layer drums.
Applications
- Stage Sinking Ropes
- Parallel Drum Hoist
- Blair Hoist
Advantages
- Highest strength
- Ideal resistance to rotation
- Excellent spooling on multi-layer drums
- Low D/d ratio possible
Downloads
Features
CompactionDyform MAX
CoreIWRC
Steel Grades1770, 1960 or 2160
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised
Bridon Tiger Dyform® 34LR MAX specification
Note for more detailed information please download the brochure above.
| Nominal Diameter | Nominal Length Mass | Calculated Minimum Breaking Force | |
|---|---|---|---|
| Grade 2060 N/mm² | Grade 2160 N/mm² | ||
| mm | kg/m | kN | kN |
| 34 | 6.32 | 1128 | 1187 |
| 36 | 7.12 | 1274 | 1334 |
| 38 | 7.95 | 1422 | 1491 |
| 40 | 8.82 | 1579 | 1648 |
| 42 | 9.73 | 1717 | 1795 |
| 44 | 10.69 | 1913 | 1952 |
| 44.5 | 10.95 | 1952 | 2001 |
| 46 | 11.65 | 2080 | 2139 |
| 47.6 | 12.51 | 2237 | 2286 |
| 48 | 12.73 | 2276 | 2325 |
| 50 | 13.76 | 2462 | 2521 |
| 50.8 | 14.23 | 2541 | 2590 |
| 52 | 14.88 | 2659 | 2747 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
