Description

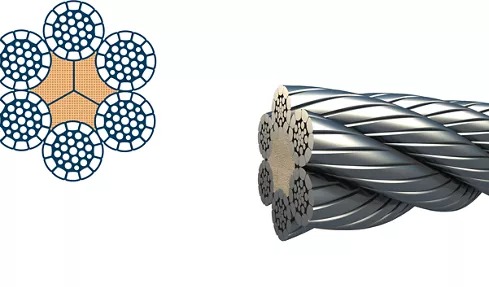

The Bridon Tiger Dyform® 6CDR rope has a robust rope construction with a special rope preformation for long splicing, available in special tensile grades with high density and high tolerance cores.
Applications
- Conveyor Drive Rope
Advantages
- Special preformation for long splicing
- High density core
- Reduced line stand pulley maintenance
Downloads
Features
CompactionDyform
CoreFibre core
Steel Grades1770, 1860 or 1960
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised
Bridon Tiger Dyform® 6CDR specification
Note for more detailed information please download the brochure above.
| Nominal Diameter | Nominal Length Mass | Calculated Minimum Breaking Force | |
|---|---|---|---|
| Grade 1670 N/mm² | Grade 1820 N/mm² | ||
| mm | kg/mm | kN | kN |
| 32 | 4.33 | 683 | 744 |
| 33 | 4.6 | 726 | 791 |
| 34 | 4.89 | 771 | 840 |
| 35 | 5.19 | 817 | 890 |
| 36 | 5.49 | 864 | 942 |
| 37 | 5.79 | 913 | 995 |
| 38 | 6.11 | 963 | 1040 |
| 39 | 6.44 | 1010 | 1100 |
| 40 | 6.77 | 1060 | 1160 |
| 41 | 7.11 | 1120 | 1220 |
| 42 | 7.46 | 1170 | 1280 |
| 43 | 7.82 | 1230 | 1340 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
