Description

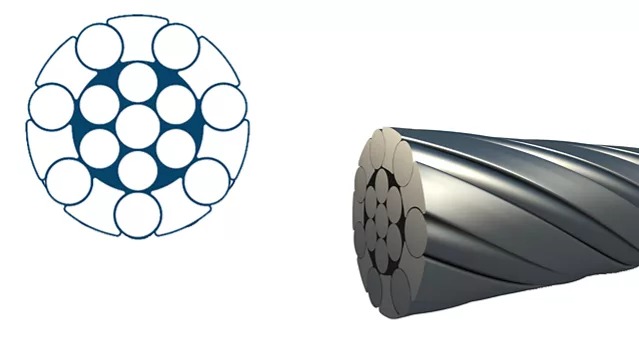

Bekaert’s Bridon Tiger® Half Lock Guide Ropes deliver high strength along with good resistance to wear and corrosion and reduced stretch.
Applications
- Guide & Rubbing Ropes
Advantages
- Optimized strength to weight ratio
- Tailored lubrication
- Low rotation
- Long service life
- Largest outside wire diameters
Downloads
Features
Compaction–
CoreIWRC
Steel Grades1770, 1860 or 1960
Lay typeLangs lay or Regular lay
Lay DirectionRH or LH
FinishBright or Galvanised
Bridon Tiger® Half Lock Guide Ropes specification
Note for more detailed information please download the brochure above.
| Nominal Diameter | Nominal Length Mass | Calculated Aggregate Breaking Force | Calculated Minimum Breaking Force | ||
|---|---|---|---|---|---|
| Standard Grade | Higher Grade | Standard Grade | Higher Grade | ||
| mm | kg/m | kN | kN | kN | kN |
| 29 | 4.63 | 455 | 546 | 421 | 505 |
| 32 | 5.63 | 554 | 665 | 512 | 614 |
| 35 | 6.74 | 663 | 796 | 613 | 736 |
| 38 | 7.94 | 781 | 937 | 722 | 866 |
| 41 | 9.25 | 909 | 1091 | 841 | 1009 |
| 45 | 11.10 | 1092 | 1310 | 1010 | 1212 |
| 48 | 12.70 | 1241 | 1489 | 1148 | 1378 |
| 51 | 14.30 | 1411 | 1693 | 1305 | 1566 |
| 52 | 14.95 | 1704 | 1942 | 1576 | 1796 |
| 54 | 16.34 | 1845 | 2110 | 1707 | 1952 |
This table is for guidance purpose only with no guarantee or warranty (express or implied) as to its accuracy. The products described may be subject to change without notice, and should not be relied on without further advice from Bekaert.
