• Load Capacity
  1500 – 3000 kg
• Designed for Concrete Pipes
  Lifting gear for the vertical transport of concrete pipe and culverts must be very versatile. Most important, it must be absolutely safe and easy to handle under even the harshest conditions. The Tigrip concrete pipe lifting gear meets all theserequirements.
• Solid Lightweight Design

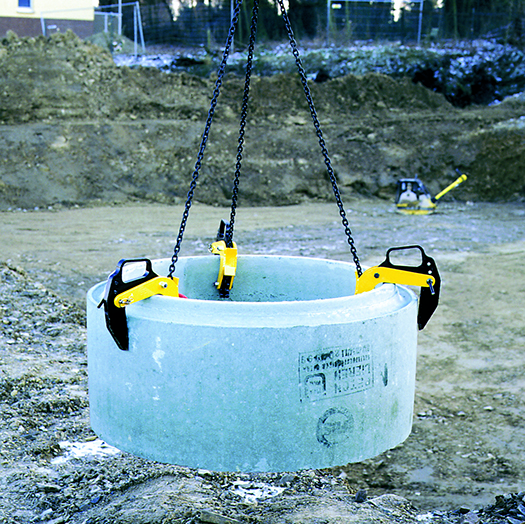

  It is a three legged lifting system for the safe and non-marring transport of concrete pipes up to a diameter of Ø 2000mm and a load of up to 3 t.
• Large Jaw Capacity
  The jaw capacity is designed for concrete pipe thicknesses from 40 – 220mm.
• Simple and Safe Handling

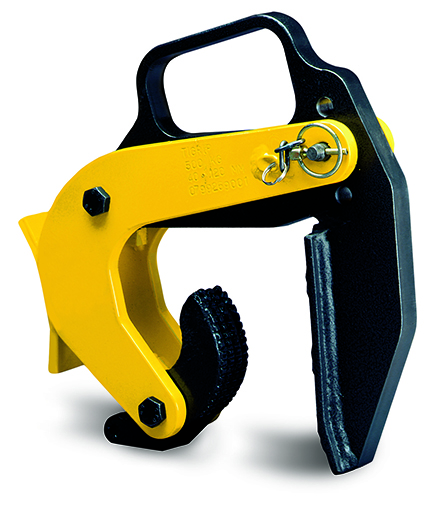

  Attachment and removal of the clamps can be done easily due to the handles that have been incorporated into each clamp.

OPTIONS:

• Lifting gear for concrete pipe up to a diameter of Ø3000mm available on request!
