Description

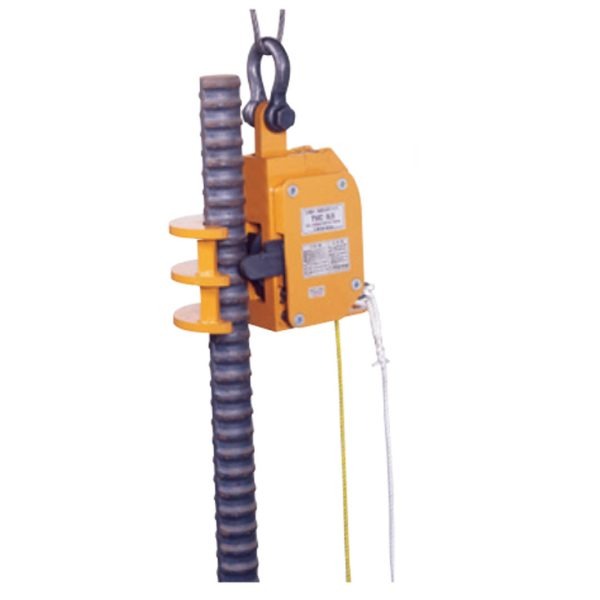

Tiger vertical lifting clamps are used for the safe vertical lifting and handling of pre-assembled reinforcing round or irregular shaped steel bars.
When the clamp is high out of reach the centre lever type open lock can be operated via the remote-control rope to lock the clamp into the open position.
The side stopper on the side of the body will engage when the remote-control lever is moved to upward position. The side stopper can prevent reinforcing rods coming off due to pressure from the rods.

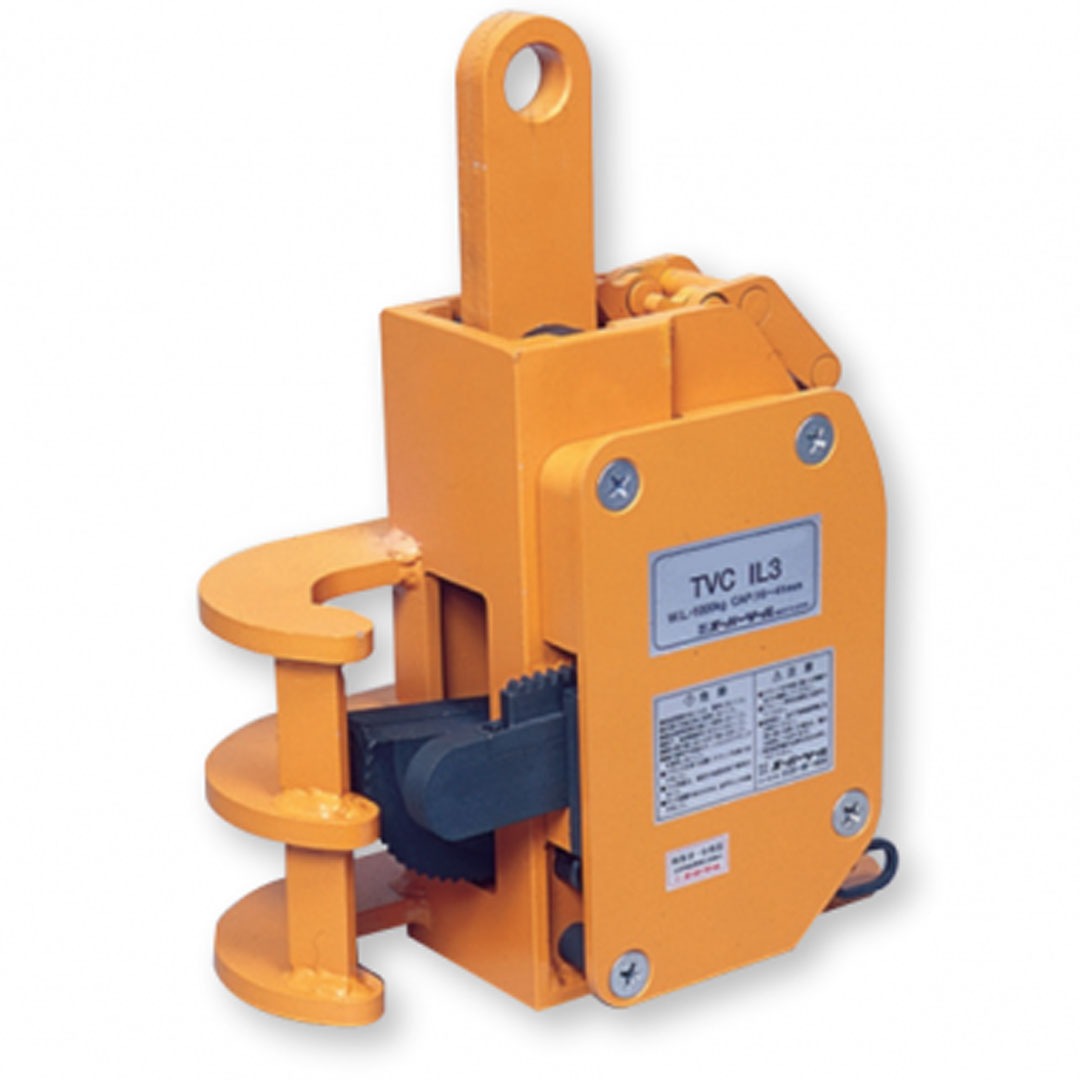

Product no: TVC
| Product Code | Capacity (tonne) | Applicable diameters (mm) | Reinforcing steel rods | I | L | b | B | Net weight (kg) | Technical Drawing |
|---|---|---|---|---|---|---|---|---|---|
| TVC-1L3 | 1.0t | 16-41 | D16-D38 | 78 | 234 | 63 | 124 | 11.0 |  |
| TVC-1L5 | 1.0t | 35-55 | D35-D51 | 109 | 265 | 87 | 148 | 12.0 | |
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
