Description
Features of in-line motor type large electric winch MWS series
This is a powerful in-line motor type electric winch that can withstand the harshest conditions with a robust body and high performance electromagnetic brake.
? Since the drum, reducer, and motor are simply arranged in series, this winch is a light-weight model among large electric winches.
? The structure has no exposed gears making this winch extremely dust resistance and drip-proof.
? Based on MAXPULL’s extensive experience and track record, design and development of fully custom or semi-custom winch orders meeting customer’s needs can easily be made.
Model: MWS-1500 / MWS-2000 / MWS-3000 / MWS-5000 / MWS-10000 / MWS-15000

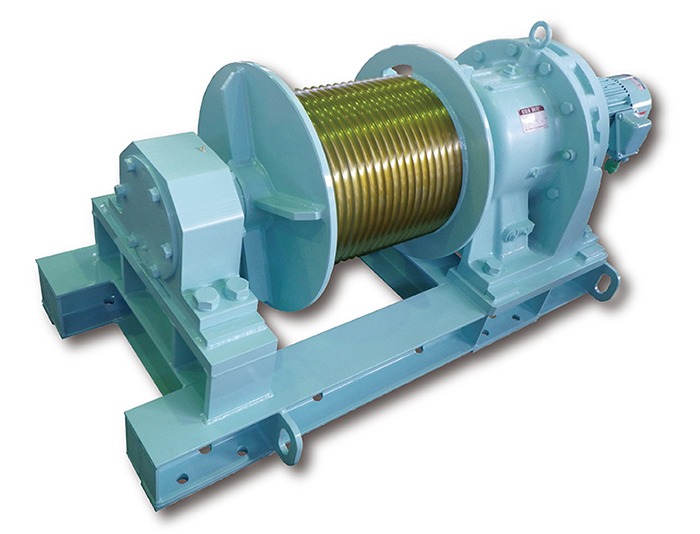

In-line motor winch?example of special product
Rich options
In-line motor type large electric winch MWS series product list
Introduction to list of products.
Model: MWS-1500
| Model |
MWS-1500 |
|
| Frequency |
50Hz |
60Hz |
| Load Rating |
1700kgf (3700lbs) |
1500kgf (3300lbs) |
| Line Speed |
8.0 m/min (26.2 ft/min) |
10.0 m/min (32.8 ft/min) |
| Drum Capacity |
?12mmx150m (492.1 ft) |
|
| Applicable Wire Rope |
?12mm (6xFi(29)) (Japanese Industrial Standards) |
|
| Motor type |
Totally enclosed external fan type |
|
| Output |
3.7 kW |
|
| Number of poles |
?P |
|
| Voltage / Current |
Three-phase ?AC200V 50Hz |
Three-phase ?AC200V 60Hz |
| Insulation |
Class B |
|
| Brake |
Spring close type electromagnetic brake |
|
| Braking rate |
150% or more |
|
| Control method |
Operation by push-button switch on the control panel |
|
Model: MWS-2000
| Model |
MWS-2000 |
|
| Frequency |
50Hz |
60Hz |
| Load Rating |
2400kgf (5200lbs) |
2000kgf (4400lbs) |
| Line Speed |
8.0 m/min (26.2 ft/min) |
10.0 m/min (32.8 ft/min) |
| Drum Capacity |
?14mmx150m (492.1 ft) |
|
| Applicable Wire Rope |
?14mm (6xFi(29)) (Japanese Industrial Standards) |
|
| Motor type |
Totally enclosed external fan type |
|
| Output |
5.5 kW |
|
| Number of poles |
?P |
|
| Voltage / Current |
Three-phase ?AC200V 50Hz |
Three-phase ?AC200V 60Hz |
| Insulation |
Class B |
|
| Brake |
Spring close type electromagnetic brake |
|
| Braking rate |
150% or more |
|
| Control method |
Operation by push-button switch on the control panel |
|
Model: MWS-3000
| Model |
MWS-3000 |
|
| Frequency |
50Hz |
60Hz |
| Load Rating |
3600kgf (7900lbs) |
3000kgf (6600lbs) |
| Line Speed |
8.0 m/min (26.2 ft/min) |
10.0 m/min (32.8 ft/min) |
| Drum Capacity |
?16mmx150m (492.1 ft) |
|
| Applicable Wire Rope |
?16mm (6xFi(29)) (Japanese Industrial Standards) |
|
| Motor type |
Totally enclosed external fan type |
|
| Output |
7.5 kW |
|
| Number of poles |
?P |
|
| Voltage / Current |
Three-phase ?AC200V 50Hz |
Three-phase ?AC200V 60Hz |
| Insulation |
Class B |
|
| Brake |
Spring close type electromagnetic brake |
|
| Braking rate |
150% or more |
|
| Control method |
Operation by push-button switch on the control panel |
|
Model: MWS-5000
| Model |
MWS-5000 |
|
| Frequency |
50Hz |
60Hz |
| Load Rating |
6000kgf (13200lbs) |
5000kgf (11000lbs) |
| Line Speed |
8.0 m/min (26.2 ft/min) |
10.0 m/min (32.8 ft/min) |
| Drum Capacity |
?22mmx150m (492.1 ft) |
|
| Applicable Wire Rope |
?22mm (6xFi(29)) (Japanese Industrial Standards) |
|
| Motor type |
Totally enclosed external fan type |
|
| Output |
11.0 kW |
|
| Number of poles |
?P |
|
| Voltage / Current |
Three-phase ?AC200V 50Hz |
Three-phase ?AC200V 60Hz |
| Insulation |
Class B |
|
| Brake |
Spring close type electromagnetic brake |
|
| Braking rate |
150% or more |
|
| Control method |
Operation by push-button switch on the control panel |
|
Model: MWS-10000
| Model |
MWS-10000 |
|
| Frequency |
50Hz |
60Hz |
| Load Rating |
12000kgf (26400lbs) |
10000kgf (22000lbs) |
| Line Speed |
8.0 m/min (26.2 ft/min) |
10.0 m/min (32.8 ft/min) |
| Drum Capacity |
?28mmx150m (492.1 ft) |
|
| Applicable Wire Rope |
?28mm (6xFi(29)) (Japanese Industrial Standards) |
|
| Motor type |
Totally enclosed external fan type |
|
| Output |
22.0 kW |
|
| Number of poles |
?P |
|
| Voltage / Current |
Three-phase ?AC200V 50Hz |
Three-phase ?AC200V 60Hz |
| Insulation |
Class B |
|
| Brake |
Spring close type electromagnetic brake |
|
| Braking rate |
150% or more |
|
| Control method |
Operation by push-button switch on the control panel |
|
Model: MWS-15000
| Model |
MWS-15000 |
|
| Frequency |
50Hz |
60Hz |
| Load Rating |
17000kgf (37400lbs) |
15000kgf (33000lbs) |
| Line Speed |
8.0 m/min (26.2 ft/min) |
10.0 m/min (32.8 ft/min) |
| Drum Capacity |
?32mmx150m (492.1 ft) |
|
| Applicable Wire Rope |
?32mm (6xFi(29)) (Japanese Industrial Standards) |
|
| Motor type |
Totally enclosed external fan type |
|
| Output |
37.0 kW |
|
| Number of poles |
?P |
|
| Voltage / Current |
Three-phase ?AC200V 50Hz |
Three-phase ?AC200V 60Hz |
| Insulation |
Class B |
|
| Brake |
Spring close type electromagnetic brake |
|
| Braking rate |
150% or more |
|
| Control method |
Operation by push-button switch on the control panel |
|
