Description
Item No.8-291KL and 8-292KL

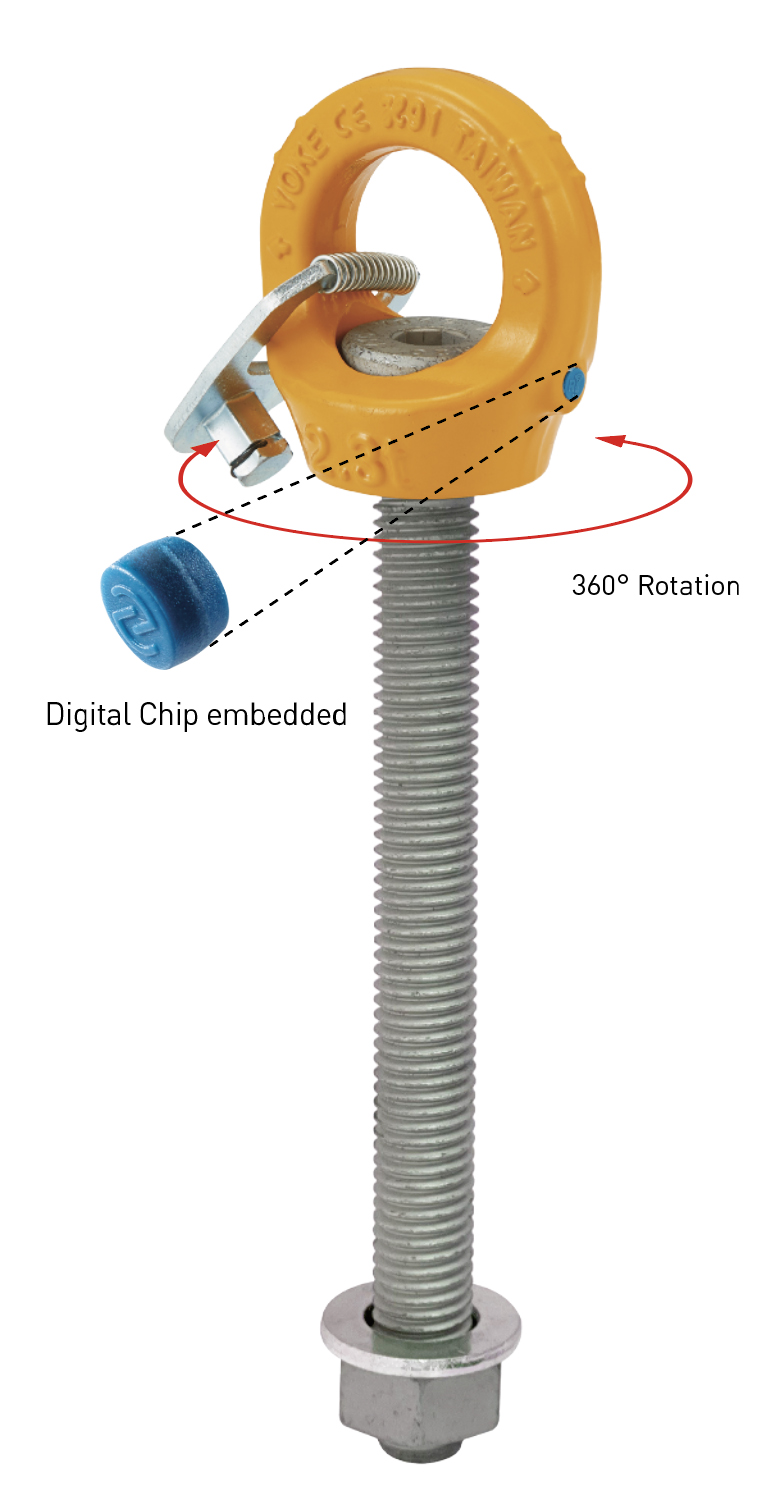

• Rotates through 360°, adjustable in the direction of the load.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Certified by DGUV GS-OA 15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly; only a tapped hole is required.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Certified by DGUV GS-OA 15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly; only a tapped hole is required.

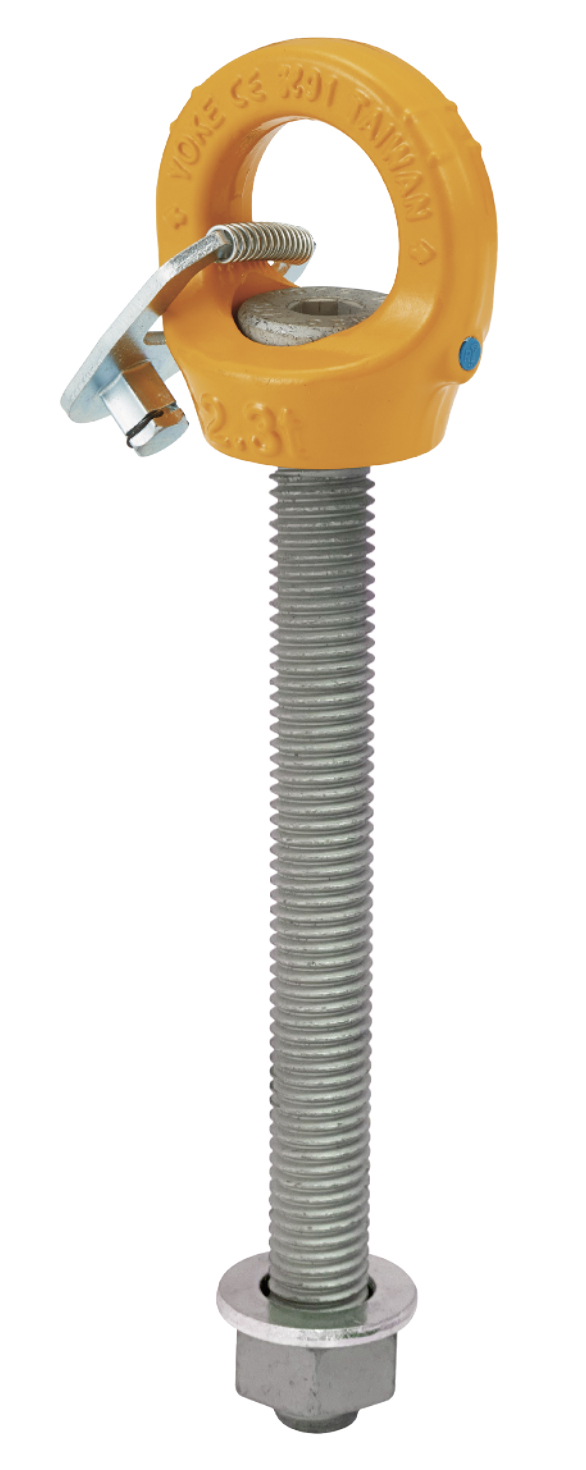

Key Eye Point, Long Bolt
Item No.8-291KL and 8-292KL
• Rotates through 360°, adjustable in the direction of the load.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Certified by DGUV GS-OA 15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly; only a tapped hole is required.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Certified by DGUV GS-OA 15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly; only a tapped hole is required.

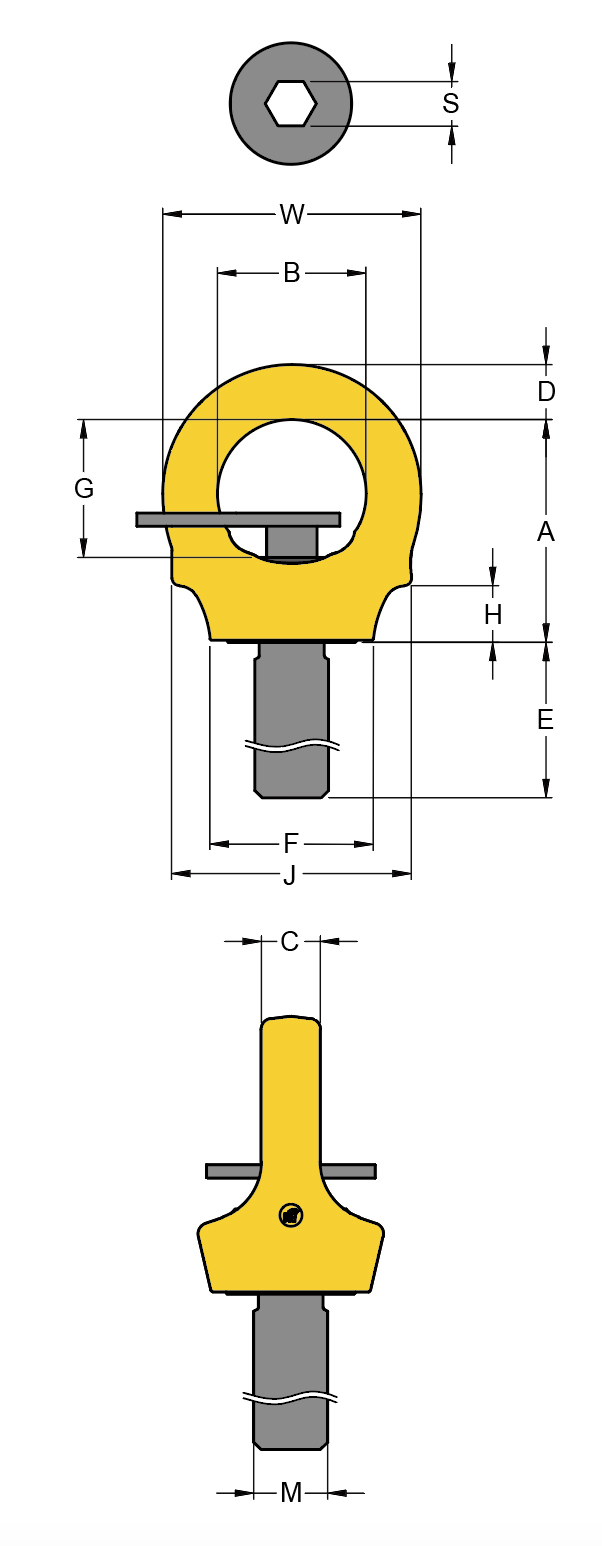

| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | B | C | D | F | G | H | J | S | W | Nm | kg | |||
| 8-291K-070/259L | Download | Compare | 7.0 | M36 | 240 | 4 | 110 | 73 | 29 | 27 | 76 | 72 | 31 | 114 | 22 | 126 | 410 | 5.2 |
| 8-291K-045/206L | Download | Compare | 4.5 | M30 | 190 | 3.5 | 91 | 61 | 24 | 22 | 62 | 59 | 23 | 95 | 17 | 105 | 350 | 2.9 |
| 8-291K-032/152L | Download | Compare | 3.2 | M24 | 140 | 3 | 72 | 49 | 19 | 18 | 53 | 47 | 19 | 78 | 14 | 84 | 150 | 1.5 |
| 8-291K-015/130L | Download | Compare | 1.5 | M16 | 120 | 2 | 52 | 35 | 14 | 13 | 35 | 34 | 11 | 56 | 10 | 61 | 30 | 0.6 |
| 8-291K-007/159L | Download | Compare | 0.8 | M12 | 150 | 1.75 | 45 | 30 | 10 | 11 | 33 | 30 | 9 | 47 | 8 | 52 | 10 | 0.3 |
| 8-291K-004/78L | Download | Compare | 0.4 | M10 | 70 | 1.5 | 38 | 25 | 9 | 9 | 25 | 24 | 6 | 41 | 6 | 44 | 10 | 0.2 |
| 8-291K-023/171L | Download | Compare | 2.3 | M20 | 160 | 2.5 | 60 | 40 | 16 | 15 | 44 | 37 | 15 | 65 | 12 | 70 | 70 | 0.9 |
