Description
Features of large industrial manual winch series

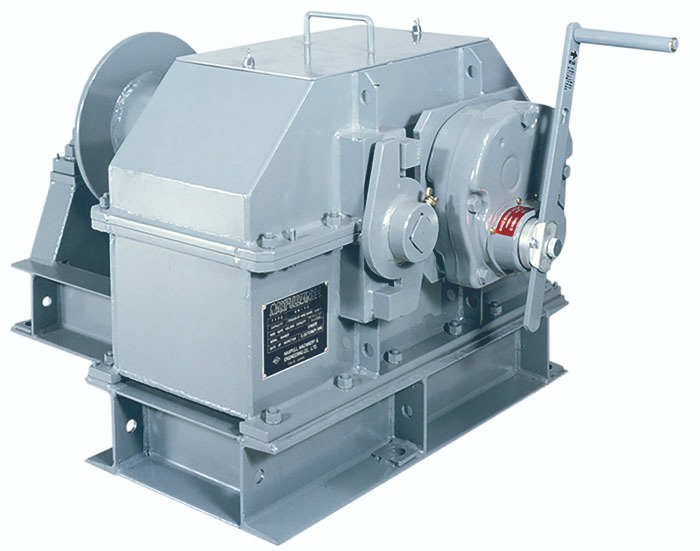

This is a large industrial manual winch unparallel in the world. Two models with tensile force of 5 tons and 10 tons are available. This series is suitable for ship vessels, large mechanical equipment, maintenance of industrial plants, lifting of floodgates, and emergency power during power outage or disaster.
Model: GM-50 / GM-100
Large industrial manual winch product list
Introduction to list of products.
Model: GM-50 : 5,000kgf (11,000lbs)
| Model | GM-50 |
|---|---|
| Load Rating | 5,000kgf?11,000lbs) 3rd Layers or Less |
| Drum Capacity | 4-Layers Winding ?16mm (6×37) x 52m |
| Length of Winding per Rotation | 6.3mm (0.25inch) |
| Gear Ratio | 145 : 1 |
| Handle Force | 1st Layer : 12.1kgf (26.7lbs) 3rd Layer?16.3kgf (35.9lbs) |
| Handle Length (Effective Maximum) | 370mm (14.57inch) |
| Weight (Main unit + Handle) | Approx. 400 kg (882lbs) |
Model: GM-100 : 10,000kgf (22,000lbs)
| Model | GM-100 |
|---|---|
| Load Rating | 10,000kgf?22,000lbs) 3rd Layers or Less |
| Drum Capacity | 3-Layers Winding ?20mm (6×37) x 55m |
| Length of Winding per Rotation | 3.4mm (0.13inch) |
| Gear Ratio | 320 : 1 |
| Handle Force | 1st Layer : 14.3kgf (31.5bs) 3rd Layer?19.1kgf (42.1lbs) |
| Handle Length (Effective Maximum) | 370mm (14.57inch) |
| Weight (Main unit + Handle) | Approx. 750 kg (1653lbs) |
