Description
Description

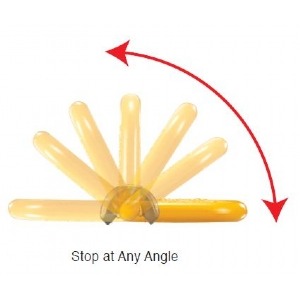

- Pivots through 180°.
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts are traceable to Test Certification.
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASMEB30.26.
- WLL forged onto each product for quick and easy identification.
- Lugs designed to assist the welding process.
- A protected spring keeps the load ring in a required position. The partsareconnected in such a way that they remain captive. The spring also
reduces noise caused by vibrations
Download
(dwg?dxf?stp?step?igs?iges?pdf)
|

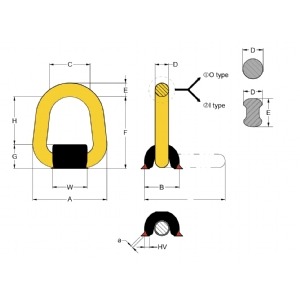

3D file download |
Item No. |
Working |
Dimensions (mm) |
N.W. |
||||||||||||
|
|
|
tonnes* |
A |
B |
C |
D |
E |
F |
G |
H |
L |
W |
HV |
a |
kg |
|
|
|
8-057-1T |
1.0 |
83 |
41 |
48 |
14 |
14 |
86 |
27 |
58 |
109 |
50 |
5 |
3 |
0.5 |
|
|
|
8-057-3T |
3.0 |
98 |
48 |
58 |
17 |
17 |
85 |
31 |
54 |
114 |
58 |
6 |
3 |
0.9 |
|
|
|
8-057-5T |
5.0 |
120 |
63 |
66 |
22 |
22 |
118 |
41 |
77 |
157 |
64 |
7 |
3 |
1.3 |
|
|
|
8-057-8T |
8.0 |
121 |
73 |
68 |
26 |
26 |
122 |
53 |
69 |
169 |
60 |
10 |
4 |
2.6 |
|
|
|
8-057-10T |
10.0 |
146 |
73 |
82 |
20 |
30 |
141 |
53 |
88 |
191 |
75 |
10 |
4 |
2.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3D file download |
Item No. |
Working |
Dimensions (inch) |
N.W. |
||||||||||||
|
|
|
lbs* |
A |
B |
C |
D |
E |
F |
G |
H |
L |
W |
HV |
a |
lb |
|
|
|
8-057-1T |
2200 |
3.27 |
1.61 |
1.89 |
0.55 |
0.55 |
3.39 |
1.06 |
2.28 |
4.29 |
1.97 |
0.2 |
0.12 |
1.1 |
|
|
|
8-057-3T |
6600 |
3.86 |
1.89 |
2.28 |
0.67 |
0.67 |
3.35 |
1.22 |
2.13 |
4.49 |
2.28 |
0.24 |
0.12 |
2.0 |
|
|
|
8-057-5T |
11000 |
4.72 |
2.48 |
2.60 |
0.87 |
0.87 |
4.65 |
1.61 |
3.03 |
6.18 |
2.52 |
0.28 |
0.12 |
2.9 |
|
|
|
8-057-8T |
17600 |
4.76 |
2.87 |
2.68 |
1.02 |
1.02 |
4.80 |
2.09 |
2.72 |
6.65 |
2.36 |
0.39 |
0.16 |
5.7 |
|
|
|
8-057-10T |
22000 |
5.75 |
2.87 |
3.23 |
0.79 |
1.18 |
5.55 |
2.09 |
3.46 |
7.52 |
2.95 |
0.39 |
0.16 |
6.2 |
|
