Description
Description
- Pivots 180° and allows side load lifting.
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts are traceable to Test Certification.
- Supplied without bolts
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASMEB30.26.

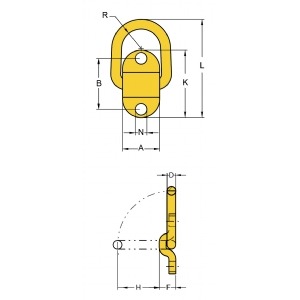

Specification
| 3D file download | Item No. | Working Load Limit | Dimensions(mm) |
Bolt Size |
N.W. |
||||||||
|
|
|
tonnes* |
A |
B |
D |
F |
H |
K |
L |
N |
R |
Thread |
kg |
|
|
8-058-1T |
1.0 |
50 |
72 |
14 |
27 |
55 |
98 |
139 |
14 |
24 |
M12 |
0.7 |
|
|
8-058-3T |
3.0 |
58 |
84 |
17 |
34 |
53 |
114 |
144 |
18 |
29 |
M16 |
1.1 |
|
|
8-058-5T |
5.0 |
64 |
117 |
22 |
43 |
74 |
160 |
160 |
23 |
33 |
M20/M22 |
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3D file download |
Item No. |
Working Load Limit |
Dimensions(inch) |
N.W. |
|
||||||||
|
|
|
tonnes* |
A |
B |
D |
F |
H |
K |
L |
N |
R |
lbs |
|
|
|
8-058-1T |
1.0 |
1.97 |
2.83 |
0.55 |
1.06 |
2.17 |
3.86 |
5.47 |
0.55 |
0.94 |
1.5 |
|
|
|
8-058-3T |
3.0 |
2.28 |
3.31 |
0.67 |
1.33 |
2.09 |
4.49 |
5.79 |
0.71 |
1.14 |
2.4 |
|
|
|
8-058-5T |
5.0 |
2.52 |
4.61 |
0.87 |
1.81 |
2.91 |
6.30 |
8.11 |
0.91 |
1.30 |
5.5 |
|
