Description
- Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolt are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
- Quick and simple assembly, just a tapped hole is required
|
3D file download |

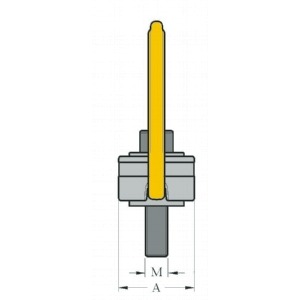

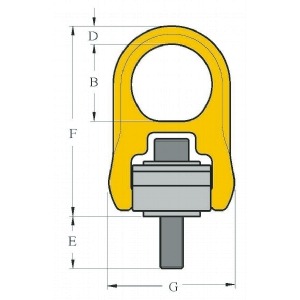

Item No. |
Working |
Thread |
|
Dimensions(mm) |
Torque in |
N.W. |
|||||||
|
|
|
tonnes* |
M |
E |
Pitch |
A |
B |
C |
D |
F |
G |
|
|
|
|
|
|
5:1 |
4:1 |
|
|
DIN13 |
Nm |
kg |
||||||
|
|
8-203-0041 |
0.4 |
0.5 |
M8 |
12 |
1.25 |
40 |
41 |
38 |
10 |
101 |
65 |
10 |
0.4 |
|
|
8-203-0051 |
0.45 |
0.55 |
M10 |
15 |
1.5 |
40 |
41 |
39 |
10 |
101 |
65 |
16 |
0.5 |
|
|
8-203-0101 |
1.05 |
1.3 |
M12 |
18 |
1.75 |
65 |
59 |
52 |
15 |
157 |
104 |
38 |
1.7 |
|
|
8-203-0191 |
1.9 |
2.4 |
M16 |
24 |
2 |
65 |
59 |
55 |
15 |
157 |
104 |
81 |
1.8 |
|
|
8-203-0211 |
2.15 |
2.7 |
M20 |
30 |
2.5 |
65 |
59 |
57 |
15 |
157 |
104 |
136 |
1.8 |
|
|
8-203-0301 |
3 |
3.75 |
M20 |
30 |
2.5 |
85 |
74 |
67 |
22 |
203 |
134 |
136 |
4 |
|
|
8-203-0421 |
4.2 |
5.25 |
M24 |
36 |
3 |
85 |
74 |
69 |
22 |
203 |
134 |
312 |
4.2 |
|
|
8-203-0701 |
7 |
8.75 |
M30 |
45 |
3.5 |
100 |
80 |
77 |
25 |
216 |
160 |
637 |
6.6 |
|
|
8-203-0801 |
8. |
10 |
M36 |
54 |
4 |
100 |
80 |
81 |
25 |
216 |
160 |
1005 |
6.9 |
|
|
8-203-1001 |
10 |
12.5 |
M36 |
54 |
4 |
120 |
106 |
108 |
36 |
306 |
220 |
1005 |
15 |
|
|
8-203-1251 |
12.5 |
15.6 |
M42 |
63 |
4.5 |
120 |
106 |
111 |
36 |
306 |
220 |
1005 |
16 |
|
|
8-203-1351 |
13.5 |
16.9 |
M48 |
72 |
5 |
120 |
106 |
115 |
36 |
306 |
220 |
1350 |
16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3D file download |
Item No. |
Working |
Thread |
|
Dimensions(mm) |
Torque in |
N.W. |
|||||||
|
|
|
tonnes* |
M |
E |
Pitch |
A |
B |
C |
D |
F |
G |
|
|
|
|
|
|
5:1 |
4:1 |
|
|
DIN13 |
Nm |
kg |
||||||
|
|
8-203-004 |
0.40 |
0.50 |
M8 |
17 |
1.25 |
40 |
41 |
41 |
10 |
101 |
65 |
10 |
0.4 |
|
|
8-203-005 |
0.45 |
0.55 |
M10 |
11 |
1.5 |
40 |
41 |
43 |
10 |
101 |
65 |
16 |
0.5 |
|
|
§ 8-203-005L |
0.45 |
0.55 |
M10 |
26 |
1.5 |
40 |
41 |
43 |
10 |
101 |
65 |
16 |
0.5 |
|
|
8-203-010 |
1.05 |
1.30 |
M12 |
15 |
1.75 |
65 |
59 |
57 |
15 |
157 |
104 |
38 |
1.7 |
|
|
§ 8-203-010L |
1.05 |
1.30 |
M12 |
30 |
1.75 |
65 |
59 |
57 |
15 |
157 |
104 |
38 |
1.7 |
|
|
8-203-019 |
1.90 |
2.40 |
M16 |
20 |
2 |
65 |
59 |
61 |
15 |
157 |
104 |
81 |
1.8 |
|
|
§ 8-203-019L |
1.90 |
2.40 |
M16 |
35 |
2 |
65 |
59 |
61 |
15 |
157 |
104 |
81 |
1.8 |
|
|
8-203-021 |
2.15 |
2.70 |
M20 |
25 |
2.5 |
65 |
59 |
65 |
15 |
157 |
104 |
136 |
1.8 |
|
|
§ 8-203-021L |
2.15 |
2.70 |
M20 |
45 |
2.5 |
65 |
74 |
65 |
15 |
157 |
104 |
136 |
1.9 |
|
|
8-203-030 |
3.00 |
3.75 |
M20 |
25 |
2.5 |
85 |
74 |
74 |
22 |
203 |
134 |
136 |
4.0 |
|
|
§ 8-203-030L |
3.00 |
3.75 |
M20 |
45 |
2.5 |
85 |
74 |
74 |
22 |
203 |
134 |
136 |
5.2 |
|
|
8-203-042 |
4.20 |
5.25 |
M24 |
26 |
3 |
85 |
74 |
78 |
22 |
203 |
134 |
312 |
4.2 |
|
|
§ 8-203-042L |
4.20 |
5.25 |
M24 |
56 |
3 |
85 |
80 |
78 |
22 |
203 |
134 |
312 |
4.3 |
|
|
8-203-070 |
7.00 |
8.75 |
M30 |
81 |
3.5 |
100 |
106 |
77 |
25 |
216 |
160 |
637 |
6.6 |
|
|
8-203-110 |
11.00 |
13.75 |
M36 |
76 |
4 |
120 |
106 |
108 |
36 |
306 |
220 |
1005 |
15.0 |
|
|
8-203-125 |
12.50 |
15.60 |
M42 |
65 |
4.5 |
120 |
111 |
111 |
36 |
306 |
220 |
1005 |
16.0 |
|
|
8-203-135 |
13.50 |
16.90 |
M48 |
70 |
5 |
120 |
111 |
115 |
36 |
306 |
220 |
1350 |
16.0 |
§ Long Bolts are designed for soft metal work piece.
