Description
Description
- Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolt are UNC thread (ASME/ ANSI B18.31M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
- Quick and simple assembly, just a tapped hole is required.
|
3D file download |
Item NO. |
Working Load Limit |
Thread Version |

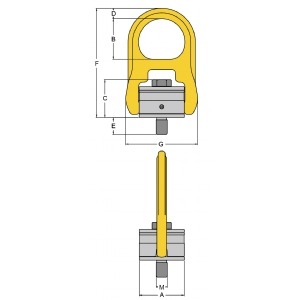

Dimensions(inch) |
Torque in |
N.W. |
||||||||
|
|
|
lbs |
M |
E |
TPI |
A |
B |
C |
D |
F |
G |
ft.lbs |
lbs |
|
|
|
|
5:1 |
4:1 |
inch |
inch |
|
|
|
|
|
|
|
|
|
|
|
8-204-0041 |
800 |
1000 |
5/16 |
0.47 |
18UNC |
1.57 |
1.61 |
1.61 |
0.35 |
4.02 |
2.56 |
7 |
0.9 |
|
|
8-204-0051 |
1000 |
1250 |
3/8 |
0.56 |
16UNC |
1.57 |
1.61 |
1.69 |
0.35 |
4.02 |
2.56 |
12 |
0.9 |
|
|
8-204-0101 |
2500 |
3125 |
1/2 |
0.75 |
13UNC |
2.56 |
2.32 |
2.24 |
0.59 |
6.26 |
4.13 |
28 |
3.7 |
|
|
8-204-0191 |
4000 |
5000 |
5/8 |
0.94 |
11UNC |
2.56 |
2.32 |
2.38 |
0.59 |
6.26 |
4.13 |
60 |
4.0 |
|
|
8-204-0211 |
5000 |
6250 |
3/4 |
1.13 |
10UNC |
2.56 |
2.32 |
2.51 |
0.59 |
6.26 |
4.13 |
100 |
4.0 |
|
|
8-204-0301 |
7000 |
8750 |
3/4 |
1.13 |
10UNC |
3.35 |
2.87 |
2.87 |
0.59 |
8.03 |
5.28 |
100 |
8.8 |
|
|
8-204-0421 |
8000 |
10000 |
7/8 |
1.31 |
9UNC |
3.35 |
2.87 |
3.07 |
0.87 |
8.03 |
5.28 |
160 |
9.3 |
|
|
8-204-0451 |
10000 |
12500 |
1 |
1.50 |
8UNC |
3.35 |
2.87 |
3.07 |
0.87 |
8.03 |
5.28 |
230 |
9.5 |
|
|
8-204-0701 |
15000 |
18750 |
1 1/4 |
1.88 |
7UNC |
3.95 |
3.15 |
3.06 |
1.00 |
8.58 |
6.30 |
470 |
14.5 |
|
|
8-204-1251 |
24000 |
30000 |
1 1/2 |
2.25 |
6UNC |
4.72 |
4.17 |
4.29 |
1.38 |
12.09 |
8.66 |
800 |
35.2 |
|
|
8-204-1351 |
30000 |
37500 |
2 |
3.00 |
4.5UNC |
4.72 |
4.17 |
4.54 |
1.38 |
12.09 |
8.66 |
1100 |
35.2 |
|
3D file download |
Item NO. |
Working Load Limit |
Thread Version |
Dimensions(inch) |
Torque in |
N.W. |
||||||||
|
|
|
lbs |
M |
E |
TPI |
A |
B |
C |
D |
F |
G |
ft.lbs |
lbs |
|
|
|
|
5:1 |
4:1 |
inch |
inch |
|
|
|
|
|
|
|
|
|
|
|
8-204-004 |
800 |
1000 |
5/16 |
0.71 |
18UNC |
1.57 |
1.61 |
1.61 |
0.35 |
4.02 |
2.56 |
7 |
0.9 |
|
|
8-204-005 |
1000 |
1250 |
3/8 |
0.71 |
16UNC |
1.57 |
1.61 |
1.69 |
0.35 |
4.02 |
2.56 |
12 |
0.9 |
|
|
8-204-010 |
2500 |
3125 |
1/2 |
0.75 |
13UNC |
2.56 |
2.32 |
2.24 |
0.59 |
6.26 |
4.13 |
28 |
3.7 |
|
|
§ 8-204-010L |
2500 |
3125 |
1/2 |
1.26 |
13UNC |
2.56 |
2.32 |
2.24 |
0.59 |
6.26 |
4.13 |
28 |
3.7 |
|
|
8-204-019 |
4000 |
5000 |
5/8 |
0.74 |
11UNC |
2.56 |
2.32 |
2.38 |
0.59 |
6.26 |
4.13 |
60 |
4.0 |
|
|
§ 8-204-019L |
4000 |
5000 |
5/8 |
1.75 |
11UNC |
2.56 |
2.32 |
2.38 |
0.59 |
6.26 |
4.13 |
60 |
4.0 |
|
|
8-204-021 |
5000 |
6250 |
3/4 |
1.24 |
10UNC |
2.56 |
2.32 |
2.51 |
0.59 |
6.26 |
4.13 |
100 |
4.0 |
|
|
§ 8-204-021L |
5000 |
6250 |
3/4 |
1.73 |
10UNC |
2.56 |
2.32 |
2.51 |
0.59 |
6.26 |
4.13 |
100 |
4.2 |
|
|
8-204-030 |
7000 |
8750 |
3/4 |
0.87 |
10UNC |
3.35 |
2.87 |
2.87 |
0.59 |
8.03 |
5.28 |
100 |
8.8 |
|
|
§ 8-204-030L |
7000 |
8750 |
3/4 |
1.87 |
10UNC |
3.35 |
2.87 |
2.87 |
0.87 |
8.03 |
5.28 |
100 |
9.5 |
|
|
8-204-042 |
8000 |
10000 |
7/8 |
1.38 |
9UNC |
3.35 |
2.87 |
3.07 |
0.87 |
8.03 |
5.28 |
160 |
9.3 |
|
|
§ 8-204-042L |
8000 |
10000 |
7/8 |
2.37 |
9UNC |
3.35 |
2.87 |
3.07 |
0.87 |
8.03 |
5.28 |
160 |
9.7 |
|
|
8-204-045 |
10000 |
12500 |
1 |
1.38 |
8UNC |
3.35 |
2.87 |
3.07 |
0.87 |
8.03 |
5.28 |
230 |
9.5 |
|
|
§ 8-204-045L |
10000 |
12500 |
1 |
2.37 |
8UNC |
3.35 |
2.87 |
3.07 |
0.87 |
8.03 |
5.28 |
230 |
10.1 |
|
|
8-204-070 |
15000 |
18750 |
1 1/4 |
2.25 |
7UNC |
3.95 |
3.15 |
3.06 |
1.00 |
8.58 |
6.30 |
470 |
14.5 |
|
|
8-204-125 |
24000 |
30000 |
1 1/2 |
2.17 |
6UNC |
4.72 |
4.17 |
4.29 |
1.38 |
12.09 |
8.66 |
800 |
35.2 |
|
|
8-204-135 |
30000 |
37500 |
2 |
3.01 |
4.5UNC |
4.72 |
4.17 |
4.54 |
1.38 |
12.09 |
8.66 |
1100 |
35.2 |
