Description
- Rotates through 360° and pivot 90°.
- Manufactured from alloy steel, quenched and tempered.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolts are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASME
B30.26.
- Quick and simple assembly, just a tapped hole is required.
Download
(dwg?dxf?stp?step?igs?iges?pdf)
Specification
|
3D file download |
Item NO. |
WLL |
Thread version |
|

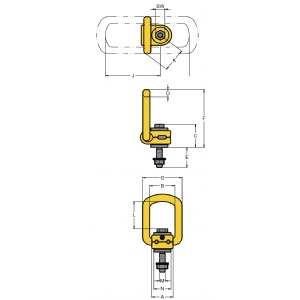

Dimensions (mm) |
|
|
|
|
Torque in |
N.W. |
||||||||
|
|
|
|
M |
E |
Pitch |
A |
B |
C |
D |
F |
G |
SW |
J |
K |
L |
N |
|
|
|
|
|
|
|
tonnes |
mm |
DIN13 |
|
|
|
|
|
|
lbs |
|||||||
|
|
8-211-003/105L |
0.3 |
M 8 |
76 |
1.25 |
30 |
35 |
35 |
11 |
86 |
55 |
13 |
77 |
34 |
41 |
24 |
30 |
0.4 |
|
|
|
8-211-006/125L |
0.63 |
M10 |
96 |
1.5 |
30 |
35 |
36 |
11 |
86 |
55 |
17 |
78 |
34 |
40 |
24 |
60 |
0.4 |
|
|
|
8-211-010/150L |
1 |
M12 |
114 |
1.75 |
33 |
38 |
44 |
14 |
99 |
57 |
19 |
89 |
38 |
42 |
31 |
100 |
0.5 |
|
|
|
8-211-015/185L |
1.5 |
M16 |
149 |
2 |
33 |
38 |
46 |
14 |
99 |
57 |
24 |
89 |
38 |
40 |
31 |
150 |
0.7 |
|
|
|
8-211-025/230L |
2.5 |
M20 |
187 |
2.5 |
50 |
54 |
56 |
16 |
142 |
82 |
30 |
132 |
53 |
70 |
49 |
250 |
1.7 |
|
|
|
8-211-040/265L |
4 |
M24 |
221 |
3 |
50 |
54 |
59 |
16 |
143 |
82 |
36 |
132 |
53 |
67 |
45 |
400 |
2.0 |
|
|
|
8-211-050/340L |
5 |
M30 |
279 |
3.5 |
60 |
65 |
81 |
23 |
170 |
99 |
46 |
153 |
64 |
67 |
59 |
500 |
2.9 |
|
|
|
8-211-080/300L |
8 |
M36 |
222 |
4 |
77 |
85 |
101 |
27 |
225 |
124 |
55 |
205 |
80 |
97 |
69 |
800 |
6.9 |
|
|
|
8-211-100/350L |
10 |
M42 |
272 |
4.5 |
77 |
85 |
104 |
27 |
225 |
124 |
65 |
204 |
79 |
94 |
69 |
1000 |
7.9 |
|
|
|
8-211-150/350L |
15 |
M42 |
264 |
4.5 |
95 |
104 |
112 |
36 |
258 |
158 |
65 |
229 |
98 |
110 |
98 |
1500 |
13.5 |
|
|
|
8-211-200/385L |
20 |
M48 |
295 |
5 |
95 |
104 |
120 |
36 |
260 |
158 |
75 |
230 |
99 |
104 |
98 |
2000 |
15.5 |
|
