Description

Description

• Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolt are Metric thread (ASME / ANSI B18.3.1M).
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASMEB30.26.
• Quick and simple assembly, just a tapped hole is required.

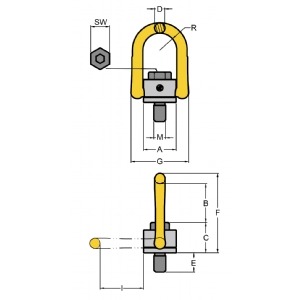

Specification



?D file downlod	WLL			Dimensions (mm)											Torque in	N.W.
			M	E	Pitch	A	B	C	D	F	G	R	SW	I
		tonnes	mm	mm	DIN13										Nm	kg
	8-231-005	0.5	M 8	13	1.25	33	42	28	11	80	58	17	13	44	30	0.2
	8-231-007	0.7	M10	16	1.5	33	41	29	11	80	58	17	17	44	60	0.3
	8-231-010	1.0	M12	20	1.75	33	39	31	11	80	58	17	19	44	100	0.3
	8-231-015	1.5	M14	21	2	51	56	45	17	116	90	27	22	63	120	0.9
	8-231-020	2.0	M16	24	2	50	54	46	17	116	90	27	24	63	150	0.9
	8-231-025	2.5	M18	26	2.5	65	77	57	20	155	108	34	30	86	200	1.9
	8-231-030	3.0	M20	34	2.5	51	52	49	17	116	90	27	30	63	250	1.1
	8-231-050	5.0	M24	36	3	72	81	59	25	163	125	37	36	88	400	2.7
	8-231-056	5.6	M27	38	3	87	96	79	30	204	148	46	41	110	400	4.7
	8-231-078	7.8	M30	48	3.5	87	94	81	30	204	148	46	46	110	500	5.1
	8-231-100	10	M36	54	4	87	90	85	30	204	148	46	55	110	1000	5.6
	8-231-125	12.5	M36	56	4	109	112	98	36	248	188	57	55	128	1000	10.2
	8-231-156	15.6	M42	64	4.5	110	101	108	36	248	188	57	65	128	1500	10.6
	8-231-200	20.0	M48	73	5	110	97	112	36	248	188	57	75	128	2000	12.0
	8-231-220	22.0	M56	85	5.5	123	116	121	36	274	202	64	85	145	2100	14.3
	8-231-225	22.5	M64	100	6	123	111	126	36	274	202	64	95	146	2200	16.6
