Description
Description
- Rotates through 360° and pivot 180°, and simultaneously allows liftingfrom any direction.
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolt are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASMEB30.26.
- Quick and simple assembly, just a tapped hole is required.
Download
(dwg?dxf?stp?step?igs?iges?pdf)
Specification
|
3D file download |
Working |
Thread version |

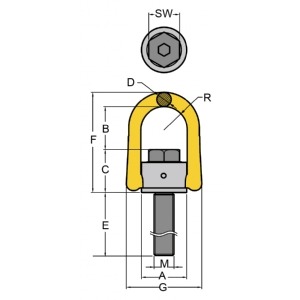

Dimensions |
Torque in |
N.W. |
|||||||||||
|
|
|
|
|
M |
E |
Pitch |
A |
B |
C |
D |
F |
G |
R |
SW |
|
|
|
|
|
tonnes |
mm |
mm |
DIN13 |
mm |
Nm |
kg |
||||||||
|
|
8-231-005/105L |
0.5 |
|
M 8 |
83 |
1.25 |
33 |
42 |
28 |
11 |
80 |
58 |
17 |
13 |
30 |
0.3 |
|
|
8-231-007/125L |
0.7 |
|
M 10 |
103 |
1.5 |
33 |
41 |
29 |
11 |
80 |
58 |
17 |
17 |
60 |
0.4 |
|
|
8-231-010/150L |
1.0 |
|
M 12 |
128 |
1.75 |
33 |
40 |
31 |
11 |
80 |
58 |
17 |
19 |
100 |
0.4 |
|
|
8-231-020/185L |
2.0 |
|
M 16 |
149 |
2 |
50 |
54 |
46 |
17 |
117 |
90 |
27 |
24 |
150 |
1.0 |
|
|
8-231-030/230L |
3.0 |
|
M 20 |
194 |
2.5 |
50 |
52 |
49 |
17 |
117 |
90 |
27 |
30 |
250 |
2.0 |
|
|
8-231-050/265L |
5.0 |
|
M 24 |
221 |
3 |
72 |
81 |
59 |
25 |
163 |
125 |
37 |
36 |
400 |
2.8 |
|
|
8-231-078/340L |
7.8 |
|
M 30 |
278 |
3.5 |
87 |
94 |
81 |
30 |
204 |
148 |
46 |
46 |
500 |
6.3 |
|
|
8-231-125/300L |
12.5 |
|
M 36 |
225 |
4 |
110 |
112 |
98 |
36 |
247 |
188 |
57 |
55 |
1000 |
10.6 |
|
|
8-231-156/350L |
15.6 |
|
M 42 |
268 |
4.5 |
110 |
101 |
108 |
36 |
247 |
188 |
57 |
65 |
1500 |
11.3 |
|
|
8-231-200/385L |
20.0 |
|
M 48 |
303 |
5 |
110 |
97 |
113 |
36 |
248 |
188 |
57 |
75 |
2000 |
13.3 |
