Description

• Pivots to 230°, rotates through 360° due to its unique ball bearing design.

Design factor 4:1 in all directions.

• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Certified by DGUV GS-OA-15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and batch code links to Test Certificate sheet.
• Bolt are Metric thread (ASME / ANSI B18.3.1M).
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• All YOKE Super points meet or exceed all the requirements of ASMEB30.26.
• Easy to attach or dismantle due to the forged hexagon shaped body ofthe Super Point
• Capable of rotating under load. Do not turn continuously in 90 degreedirectionat full load.

Specification

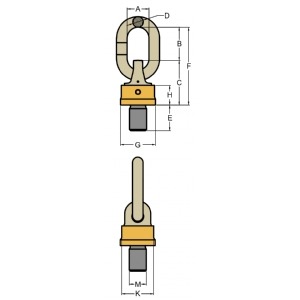

3D file download	Item No.	WLL	Thread version					Dimensions							Torque in	N.W.
			M	E	Pitch	G	C	K		H	F	D	B	A
		tonnes	mm	mm	DIN13					mm					Nm	kg
	8-251-004-01	0.3	M8	12	1.25	36.5	48	34		20.5	101	13	53	35	10- 40	0.3
	8-251-007-01	0.5	M10	18	1.5	36.5	48	34		20.5	101	13	53	35	10 – 40	0.4
	8-251-007-02	0.7	M12	18	1.75	36.5	48	34		20.5	101	13	53	35	15 – 40	0.4
	8-251-007-03	0.7	M12	25	1.75	36.5	48	34		20.5	101	13	53	35	15 – 40	0.4
	8-251-007-04	1	M14	20	2	36.5	48	34		20.5	101	13	53	35	30 – 40	0.4
	8-251-014-01	1.4	M16	20	2	36.5	48	34		20.5	101	13	53	35	45 – 130	0.44
	8-251-014-02	1.4	M16	24	2	36.5	48	34		20.5	101	13	53	35	45 – 130	0.5
	8-251-014-03	1.4	M16	30	2	36.5	48	34		20.5	101	13	53	35	45 – 130	0.5
	8-251-014-04	1.7	M20	30	2.5	36.5	48	34		20.5	101	13	53	35	75 – 130	0.5
	8-251-014-05	1.7	M24	30	3	36.5	48	34		20.5	101	13	53	35	90 – 130	0.5
	8-251-025-01	2.5	M20	30	2.5	52	68	46		28	127	16	59	35	100 – 170	1.0
	8-251-025-02	2.5	M20	40	2.5	52	68	46		28	127	16	59	35	100 – 170	1.0
	8-251-025-03	2.5	M20	50	2.5	52	68	46		28	127	16	59	35	100 – 170	1.1
	8-251-025-04	2.5	M20	70	2.5	52	68	46		28	127	16	59	35	100 – 170	1.1
	8-251-040-01	4	M24	30	3	57	75	50		34.5	148	19	73	40	190 – 280	1.5
	8-251-040-02	4	M24	36	3	57	75	50		34.5	148	19	73	40	190 – 280	1.5
	8-251-040-03	4	M24	45	3	57	75	50		34.5	148	19	73	40	190 – 280	1.5
	8-251-040-04	4	M24	50	3	57	75	50		34.5	148	19	73	40	190 – 280	1.5
	8-251-040-05	4	M30	35	3.5	57	75	50		34.5	148	19	73	40	190 – 280	1.5
	8-251-067-01	6.7	M30	35	3.5	70	95	65		41	163	20	68	40	230 – 400	2.4
	8-251-067-02	6.7	M30	45	3.5	70	95	65		41	163	20	68	40	230 – 400	2.4
	8-251-067-03	6.7	M30	50	3.5	70	95	65		41	163	20	68	40	230 – 400	2.5
	8-251-067-04	6.7	M30	60	3.5	70	95	65		41	163	20	68	40	230 – 400	2.5
	8-251-080-01	8	M30	35	3.5	81	106	75		48	201	22	95	50	270 – 600	3.6
	8-251-080-02	8	M30	45	3.5	81	106	75		48	201	22	95	50	270 – 600	3.7
	8-251-100-01	10	M36	50	4	81	106	75		48	201	22	95	50	270 – 600	3.8
	8-251-100-02	10	M36	54	4	81	106	75		48	201	22	95	50	270 – 600	3.9
	8-251-125-01	12.5	M42	50	4.5	81	106	75		48	201	22	95	50	270 – 700	3.9
	8-251-125-02	12.5	M42	60	4.5	81	106	75		48	201	22	95	50	270 – 700	4.0
	8-251-125-03	12.5	M42	63	4.5	81	106	75		48	201	22	95	50	270 – 700	4.0
	8-251-125-04	12.5	M45	60	4.5	81	106	75		48	201	22	95	50	270 – 700	4.1
	8-251-125-05	12.5	M48	72	5	81	106	75		48	201	22	95	50	270 – 700	4.4
	8-251-170-01	13	M42	60	4.5	104	127	95		58	256	32	129	70	350 – 800	7.4
	8-251-170-02	17	M45	60	4.5	104	127	95		58	256	32	129	70	350 – 800	7.5
	8-251-170-03	17	M48	60	5	104	127	95		58	256	32	129	70	350 – 800	7.6
	8-251-170-04	17	M48	72	5	104	127	95		58	256	32	129	70	350 – 800	7.7
	8-251-170-045	17	M52	78	5	104	127	95		58	256	32	129	70	350 – 800	7.9
	8-251-170-05	18	M56	78	5.5	104	127	95		58	256	32	129	70	350 – 900	8.1
	8-251-170-06	18	M56	84	5.5	104	127	95		58	256	32	129	70	350 – 900	8.1
	8-251-200-01	20	M64	96	6	104	127	95		58	256	32	129	70	350 – 900	8.9
	8-251-200-02	20	M64	110	6	104	127	95		58	256	32	129	70	350 – 900	9.3
	8-251-280-01	28	M64	96	6	129	174	115		78	305	36	131	80	500 – 1000	16.4
	8-251-280-02	28	M72	120	6	129	174	115		78	305	36	131	80	500 – 1200	17.7
	8-251-280-03	28	M80	150	6	129	174	115		78	305	36	131	80	500 – 1200	19.6
	8-251-350-005	35	M72	108	6	148	187	135		83	366	45	140	92	500 – 1400	24.8
	8-251-350-01	35	M80	120	6	148	187	135		83	366	45	140	92	500 – 1400	25.3
	8-251-350-02	35	M90	150	6	148	187	135		83	366	45	140	92	500 – 1500	27.8
	8-251-400-005	40	M72	108	6	170	210	145		83	340	45	130	92	500 – 1500	30.1
	8-251-400-01	40	M80	120	6	170	210	145		83	340	45	130	92	500 – 1500	31.9
	8-251-400-02	40	M90	115	6	170	210	145		83	340	45	130	92	500 – 1500	33.6
	8-251-400-025	40	M90	135	6	170	210	145		83	340	45	130	92	500 – 1500	33.9
	8-251-400-03	40	M90	150	6	170	210	145		83	340	45	130	92	500 – 1500	34.2
	8-251-400-04	40	M100	150	6	170	210	145		83	340	45	130	92	500 – 1700	35.2
