Description
- Pivots to 230°, rotates through 360° due to its unique ball bearing design.
Design factor 4:1 in all directions.
- Manufactured from forged alloy steel, quenched and tempered. ?
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and batch code links to Test Certificate sheet.
- Bolt are UNC thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Super points meet or exceed all the requirements of ASMEB30.26.
- Easy to attach or dismantle due to the forged hexagon shaped body ofthe Super Point
- Capable of rotating under load. Do not turn continuously in 90 degreedirection at full load.
Download
(dwg?dxf?stp?step?igs?iges?pdf)
|
3D file download |
Item NO. |
Working |
Thread version |

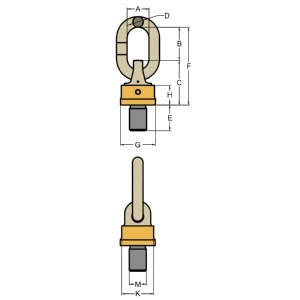

Dimensions |
Torque |
N.W. |
||||||||||
|
|
|
|
M |
E |
TPI |
G |
C |
K |
H |
F |
D |
B |
A |
|
|
|
|
|
|
tonnes |
inch |
inch |
|
|
inch |
Nm |
lbs |
|||||||
|
|
8-252-007-01 |
0.5 |
3/8 |
0.56 |
16UNC |
1.44 |
1.89 |
1.34 |
0.81 |
3.98 |
0.51 |
2.09 |
1.38 |
10 – 40 |
1.0 |
|
|
|
8-252-007-02 |
0.7 |
1/2 |
0.75 |
13UNC |
1.44 |
1.89 |
1.34 |
0.81 |
3.98 |
0.51 |
2.09 |
1.38 |
15 – 40 |
1.0 |
|
|
|
8-252-014-02 |
1.4 |
5/8 |
0.94 |
11UNC |
1.44 |
1.89 |
1.34 |
0.81 |
3.98 |
0.51 |
2.09 |
1.38 |
45 – 130 |
1.0 |
|
|
|
8-252-025-01 |
2.5 |
3/4 |
1.13 |
10UNC |
2.05 |
2.68 |
1.81 |
1.10 |
5.00 |
0.63 |
2.32 |
1.38 |
100 – 170 |
2.1 |
|
|
|
8-252-040-02 |
4 |
1 |
1.50 |
8UNC |
2.24 |
2.95 |
1.97 |
1.36 |
5.83 |
0.75 |
2.87 |
1.57 |
190 – 280 |
3.3 |
|
|
|
8-252-067-02 |
6.7 |
1 1/4 |
1.88 |
7UNC |
2.76 |
3.74 |
2.56 |
1.61 |
6.42 |
0.79 |
2.68 |
1.57 |
230 – 400 |
5.3 |
|
|
|
8-252-080-02 |
8 |
1 1/4 |
1.88 |
7UNC |
3.19 |
4.17 |
2.95 |
1.89 |
7.91 |
0.87 |
3.74 |
1.97 |
270 – 600 |
8.1 |
|
|
|
8-252-100-02 |
10 |
1 1/2 |
2.25 |
6UNC |
3.19 |
4.17 |
2.95 |
1.89 |
7.91 |
0.87 |
3.74 |
1.97 |
270 – 600 |
8.3 |
|
|
|
8-252-125-03 |
12.5 |
1 3/4 |
2.63 |
5UNC |
3.19 |
4.17 |
2.95 |
1.89 |
7.91 |
0.87 |
3.74 |
1.97 |
270 – 700 |
8.8 |
|
|
|
8-252-125-05 |
12.5 |
2 |
3.00 |
4.5UNC |
3.19 |
4.17 |
2.95 |
1.89 |
7.91 |
0.87 |
3.74 |
1.97 |
270 – 700 |
9.7 |
|
|
|
8-252-170-04 |
17 |
2 |
3.00 |
4.5UNC |
4.09 |
5.00 |
3.74 |
2.28 |
10.08 |
1.26 |
5.08 |
2.76 |
350 – 800 |
16.7 |
|
|
|
8-252-170-06 |
18 |
2 1/4 |
3.38 |
4.5UNC |
4.09 |
5.00 |
3.74 |
2.28 |
10.08 |
1.26 |
5.08 |
2.76 |
350 – 900 |
17.8 |
|
|
|
8-252-200-01 |
20 |
2 1/2 |
3.75 |
4UNC |
4.09 |
5.00 |
3.74 |
2.28 |
10.08 |
1.26 |
5.08 |
2.76 |
350 – 900 |
19.6 |
|
|
|
8-252-280-01 |
28 |
2 1/2 |
3.75 |
4UNC |
5.08 |
6.85 |
4.53 |
3.07 |
12.01 |
1.42 |
5.16 |
3.15 |
500 – 1000 |
36.1 |
|
|
|
8-252-350-01 |
35 |
3 1/2 |
5.25 |
4UNC |
5.83 |
7.36 |
5.31 |
3.27 |
14.41 |
1.77 |
5.51 |
3.62 |
500 – 1400 |
55.7 |
|
* Design Factor 4:1
