- Rotates through 360° adjustable in the direction of the load.
- Manufactured from forged alloy steel, quenched and tempered.
- Tested in accordance with EN795 or TS16415.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Passed 22.2 KN/person Load testing.
- Passed 150 kg dynamic fall testing(EU standard is 100 kg).
- Meets all requirements of the German BG BAU ( Employer ?s insurance
association of the building industry).
- Meets all requirements of DIN EN795, DIN EN50308, OSHA1926.502.
- Acc. to DIN EN 365 including statement for the number of load bearing
persons is 1-2 persons.
- YOKE yellow powder coating for high visibility.
- PSA – Lifting point to be as an anchor point for personal protective
equipment.
Download
(dwg?dxf?stp?step?igs?iges?pdf)
Specification
| 3D file download |
Item NO. |
Working |
Thread version |
|
|
|

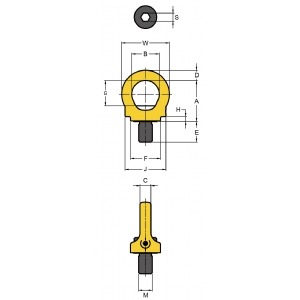

Dimensions(mm) |
Torque in |
N.W. |
|||||||
|
|
|
|
M |
A |
B |
C |
D |
E |
F |
G |
H |
J |
S |
W |
Nm |
kg |
|
|
8-281-007 |
1 Pers |
M12x1.75 |
45 |
30 |
10 |
11 |
18 |
33 |
29 |
5 |
45 |
8 |
52 |
10 |
0.2 |
|
|
8-281-015 |
1-2 Pers |
M16x2 |
52 |
35 |
14 |
13 |
24 |
35 |
33 |
8 |
52 |
10 |
61 |
30 |
0.3 |
|
|
8-281-023 |
1-2 Pers |
M20x2.5 |
60 |
40 |
16 |
15 |
30 |
44 |
37 |
7 |
60 |
12 |
70 |
70 |
0.6 |
| 3D file download |
Item NO. |
Working |
Thread version |
|
|
|
Dimensions(inch) |
Torque in |
N.W. |
|||||||
|
|
|
|
M |
A |
B |
C |
D |
E |
F |
G |
H |
J |
S |
W |
ft.lbs |
lbs |
|
|
8-281-007 |
1 Pers |
M12x1.75 |
1.8 |
1.2 |
0.4 |
0.4 |
0.7 |
1.3 |
1.1 |
0.2 |
1.8 |
0.3 |
2.0 |
7.4 |
0.4 |
|
|
8-281-015 |
1-2 Pers |
M16x2 |
2.0 |
1.4 |
0.6 |
0.5 |
0.9 |
1.4 |
1.3 |
0.3 |
2.0 |
0.4 |
2.4 |
22.1 |
0.7 |
|
|
8-281-023 |
1-2 Pers |
M20x2.5 |
2.4 |
1.6 |
0.6 |
0.6 |
1.2 |
1.7 |
1.5 |
0.3 |
2.4 |
0.5 |
2.8 |
51.7 |
1.3 |
