Description
Description
- Rotates through 360° adjustable in the direction of the load.
- Manufactured from forged stainless steel.
- Manufactured and tested in accordance with EN795.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Passed 22.2KN/person load testing.
- Passed 150 kg dynamic fall testing(EU standard is 100 kg).
- Meets all requirements of the German BG BAU ( Employer’s insurance
association of the building industry).
- Meets all requirements of DIN EN795, DIN EN50308, OSHA1926.502.
- Acc. to DIN EN 365 including statement for the number of load bearing
persons is 1-2 persons.
- YOKE yellow powder coating for high visibility.
- Suitable for permanently outdoor application.
- PSA-INOX Lifting point to be as an anchor point for personal protective
equipment.
Download
(dwg?dxf?stp?step?igs?iges?pdf)
Specification

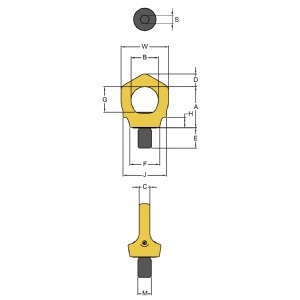

| 3D file download | Item NO. | Working Load Limit |
Thread version | Dimensions(mm) | Torque in | N.W. | ||||||||||
| M | A | B | C | D | E | F | G | H | J | S | W | Nm | kg | |||
 |
8-285-007 | 1 Pers | M12x1.75 | 45 | 30 | 10 | 14 | 18 | 33 | 29 | 9 | 48 | 8 | 52 | 10 | 0.2 |
|
8-285-015 | 1-2 Pers | M16x2 | 52 | 35 | 14 | 16 | 24 | 35 | 33 | 12 | 56 | 10 | 61 | 30 | 0.4 |
 |
8-285-023 | 1-2 Pers | M20x2.5 | 60 | 40 | 16 | 19 | 30 | 44 | 37 | 15 | 64 | 12 | 70 | 70 | 0.6 |
| 3D file download | Item NO. | Working Load Limit |
Thread version | Dimensions(inch) | Torque in | N.W. | ||||||||||
| M | A | B | C | D | E | F | G | H | J | S | W | ft.lbs | lbs | |||
|
8-285-007 | 1 Pers | M12x1.75 | 1.8 | 1.2 | 0.4 | 0.6 | 0.7 | 1.3 | 1.1 | 0.4 | 1.9 | 0.3 | 2.0 | 7.4 | 0.4 |
|
8-285-015 | 1-2 Pers | M16x2 | 2.0 | 1.4 | 0.6 | 0.6 | 0.9 | 1.4 | 1.3 | 0.5 | 2.2 | 0.4 | 2.4 | 22.1 | 0.7 |
|
8-285-023 | 1-2 Pers | M20x2.5 | 2.4 | 1.6 | 0.6 | 0.7 | 1.2 | 1.7 | 1.5 | 0.6 | 2.5 | 0.5 | 2.8 | 51.7 | 1.3 |
