• Rotates through 360° adjustable in the direction of the load.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN1677-1.
• Certified by DGUV GS-OA 15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.

Specification

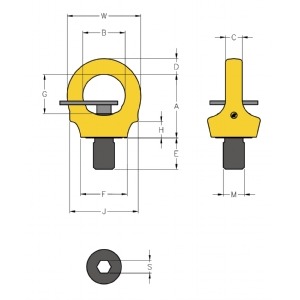

3D file download	Item No.	Working Load Limit	Thread version						Dimensions							Torque in	N.W.
		tonnes	M	E	Pitch	A	B	C	D	F	G	H	J	S	W
			mm	mm	DIN13				mm							Nm	kg
	8-291K-001	0.1	M6	9	1.00	30	20	7	7	23	19	4	33	6	34	5	0.1
	8-291K-003	0.3	M 8	12	1.25	38	25	9	9	25	24	6	41	6	44	10	0.1
	8-291K-004	0.4	M 10	15	1.5	38	25	9	9	25	24	6	41	6	44	10	0.1
	8-291K-007	0.75	M 12	18	1.75	45	30	10	11	33	30	9	47	8	52	10	0.2
	8-291K-015	1.5	M 16	24	2	52	35	14	13	35	34	11	56	10	61	30	0.4
	8-291K-023	2.3	M 20	30	2.5	60	40	16	15	44	37	15	65	12	70	70	0.6
	8-291K-032	3.2	M 24	36	3	72	49	19	18	53	47	19	78	14	84	150	1.1
	8-291K-045	4.5	M 30	45	3.5	91	61	24	22	62	59	23	95	17	105	350	2.1
	8-291K-070	7.0	M 36	54	4	110	73	29	27	76	72	31	114	22	126	410	3.7
	8-291K-090	9.0	M 42	63	4.5	128	83	34	32	89	81	38	132	24	147	550	5.8
	8-291K-120	12.0	M 48	72	5	145	95	38	37	105	94	44	150	27	168	550	8.6
	8-291K-140	16.0	M 56	84	5.5	148	102	40	43	124	92	49	166	27	178	800	11.0
	8-291K-150	18.0	M 64	96	6	148	102	40	43	124	92	49	166	27	178	800	11.8
