Description
Description
- Rotates through 360° adjustable in the direction of the load.
- Manufactured from stainless steel. Captive bolt with high WLL.
- Manufactured and tested in accordance with DGUV GS-OA 15-04.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolts are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- All YOKE Lifting points meet or exceed all the requirements of ASMEB30.26.
- Quick and simple assembly, just a tapped hole is required.
- Used in different applications such as chemical oil coal industries,food processing, clean room and precision instrument.
Specification
|
3D file download |
Item NO. |
Working |
|
|
|
Thread version |

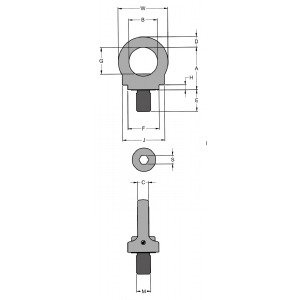

Dimensions |
Torque in |
N.W. |
|||||||||
|
|
|
|
Load Limit |
|||||||||||||||
|
|
|
|
|
M |
E |
Pitch |
A |
B |
C |
D |
F |
G |
H |
J |
S |
W |
|
|
|
|
|
tonnes |
mm |
mm |
DIN13 |
mm |
|
|
|
|
|
|
|
|
|
Nm |
kg |
|
|
|
8-S291-005 |
0.5 |
|
M 12 |
18 |
1.75 |
45 |
30 |
10 |
11 |
33 |
29 |
5 |
44 |
8 |
52 |
10 |
0.2 |
|
|
8-S291-010 |
1 |
|
M 16 |
24 |
2 |
52 |
35 |
14 |
13 |
35 |
33 |
5 |
51 |
10 |
61 |
30 |
0.3 |
|
|
8-S291-020 |
2 |
|
M 20 |
30 |
2.5 |
60 |
40 |
16 |
15 |
44 |
37 |
7 |
60 |
12 |
70 |
70 |
0.6 |
|
|
8-S291-025 |
2.5 |
|
M 24 |
36 |
3 |
72 |
49 |
19 |
18 |
52 |
46 |
10 |
72 |
14 |
84 |
150 |
1.0 |
