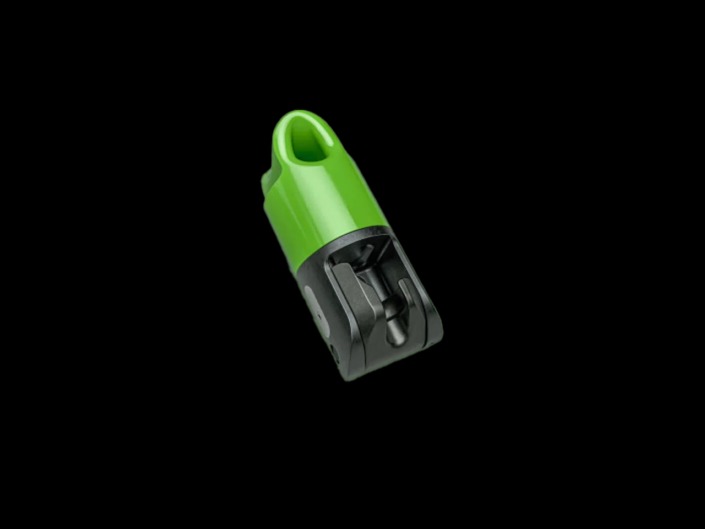

Ludwig Choker

Ludwig Choker

Category: Brand:

Description

Ideal in difficult terrain in conjunction with rope devices

When using forestry ropeways, manually releasing the timber that has been moved to the forestry road is a very time-consuming and dangerous activity. With the Ludwig Choker, automated systems also eliminate this last activity, which requires stepping out of the safe cabin. Since 2007, the system has been consistently improved to withstand the extreme conditions to which the Ludwig Choker is exposed.

Since 2011, we have also offered a reinforced version, the Ludwig Choker 69, which is used for very strong winches, such as those used in the USA and Chile, or for demanding downhill ropes.

Application

Tension the latch and click into the housing

Place the cable around the tree and insert the cable nipple in the Choker

Lift the load and place it down

Open by remote control

Explore many more applications

Technical data

  • Product
  • Working load
  • Product weight
  • Radio range
  • Choker cable diameter
  • Radio frequency



  • Ludwig Choker 64
  • 4,5 T
  • 1,8 KG / 4 LB
  • 30 M
  • 11 – 33 MM
  • 868 MHZ



  • Ludwig Choker 69
  • 8,5 T
  • 2,2 KG / 4,9 LB
  • 30 M
  • 11 – 33 MM
  • 868 MHZ

Scope of delivery

  • 4x Ludwig Choker
  • Radio control
  • Tools
  • Transport case
  • Repeater
  • 2 Spare hats
