Description
Levelling and positioning at up to 4.6T
The leveling and positioning of loads, in combination with depositing by radio control, is the rotation and angular point in all processes. The LUDWIG TRAVERSE is therefore provided as a supplementary device for a radio-controlled hook. Two additional radio-controlled movements are possible thanks to a hydraulic cylinder and a hydraulic rotator. Transposing the center of gravity to move unbalanced loads into the desired horizontal position and to move balanced loads into the desired inclination.
The load can also be positioned precisely using the endless rotation of the beam about its own axis, making the common rotation cables superfluous.
Applications
The Traverse
Radio-controlled leveling load beams / struts for transport, handling and assembly of goods and components in industry and trade
Balancing the loads
Balancing the crosshead with unevenly distributed loads
Tilt as you wish
Alignment to the desired Angle of inclination, e.g. for roof installations
Optional rotator
Positioning of the load in the desired alignment via radio-controlled rotator function.
Technical data
-
Product
- Working load limit
- Product weight
- Dimensions in cm / inches ( L x H x T )
- Radio range
- Radio frequency
- Operating voltage
-
Ludwig Traverse
- 4,6 T / 10,100 LBS.
- 400 KG / 880 LBS.
- 500 70 50 CM / 197 28 20 INCH
- 50 M / 164 FT.
- 868 MHZ
- 12 V

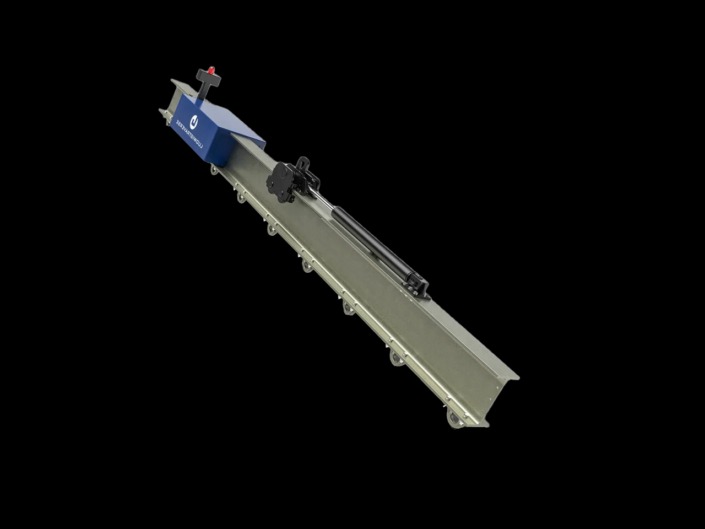

Functionality
-
1Ludwig Hook System
-
2Hydraulic cylinder and pump
-
312 V battery and charger
-
4Control unit and radio receiver
-
5Diverse attachment points
-
6Removable and adjustable feet
