Description

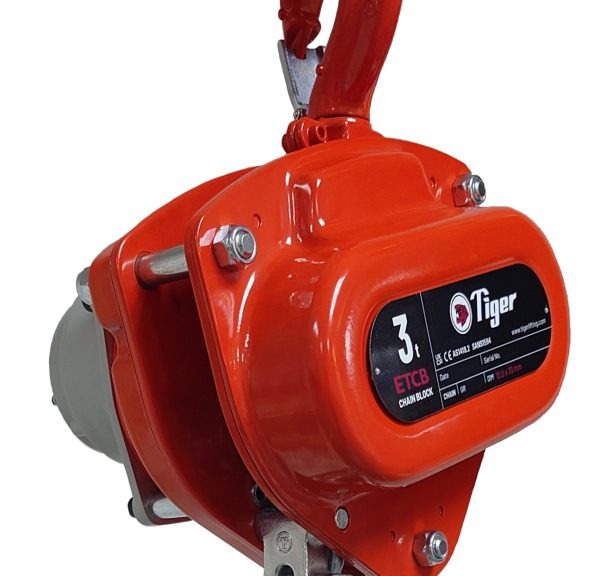

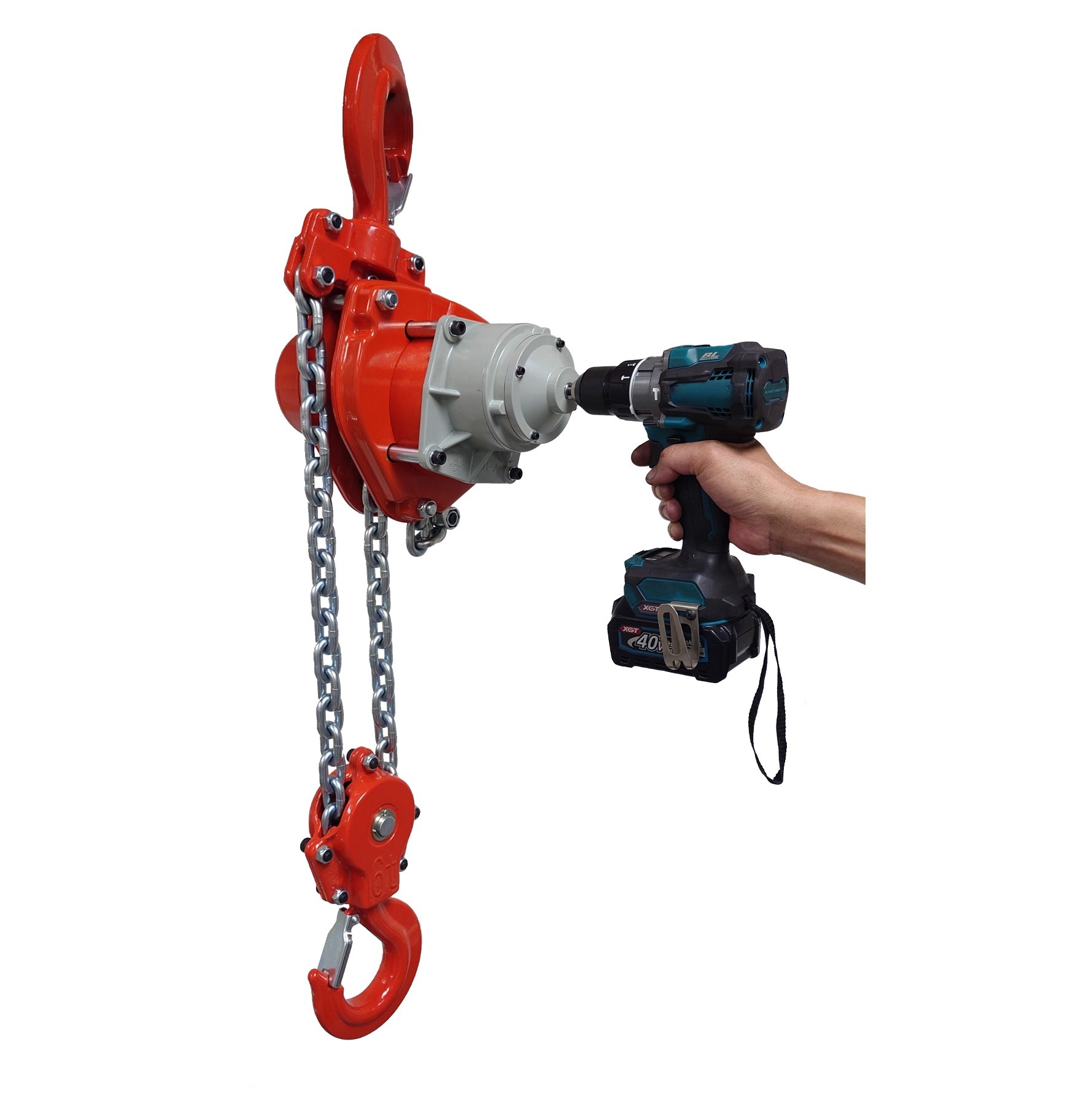

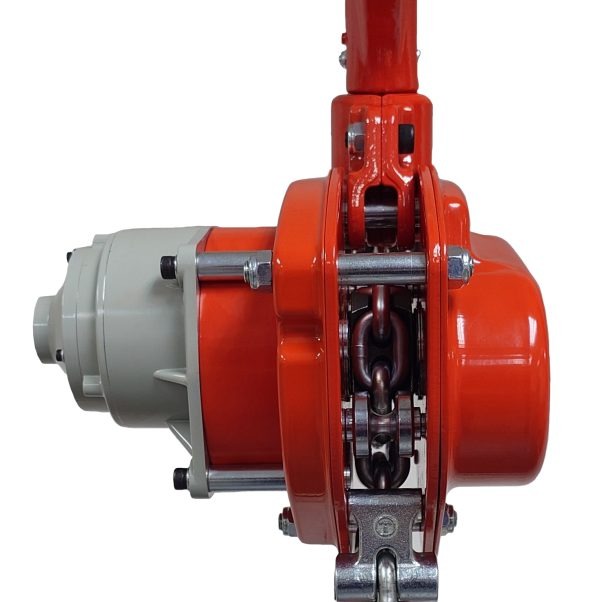

The Tiger Power PRO hoist with load limiter – ETCB, is available in 3.0 tonne, 6.0 tonne and 10.0 capacities. The hoist is fitted with a slipping clutch overload mechanism, so it is protected from overload. It is cordless battery powered and suggested to use a drill of maximum 2500 rpm to operate the unit.
Product no: ETCB
- Cordless battery powered
- Available in 3t, 6t & 10t capacities
- High speed helical gear box
- Load limiter
| Product Code | Rated load (kg) | Lifting chain specifications (mm) | Dimensions (mm) | No. chain falls | Motor speed (MAX) (r/min) | Lifting speed (m/min) | Brushless drill driver (N.m) V | Net weight (kg) | Packing weight (kg) | Packing size (cm) | Weight for each additional meter of chain (kg/cm) | Technical drawing | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F1 | F2 | G | ||||||||||||
| ETCB-0300 | 3000 | 10 x 30 | 228 | 84 | 98 | 157 | 36 | 56 | 500 | 1 | 2600 | 0.718 | 68 18V or above | 29.6 | 31.3 | 38 x 34.5 x 29 | 2.2 |  |
| ETCB-0600 | 6000 | 10 x 30 | 228 | 84 | 86 | 220 | 49 | 70 | 635 | 2 | 2600 | 0.359 | 68 18V or above | 44.0 | 46.4 | 50 x 37 x 33 | 4.4 |  |
| ETCB-1000 | 10000 | 10 x 30 | 228 | 84 | 153 | 263 | 54 | 87 | 660 | 3 | 2600 | 0.239 | 90 18V or above | 56.9 | 60.8 | 50 x 43.5 x 41 | 6.5 |  |
