Description
Product no: NX

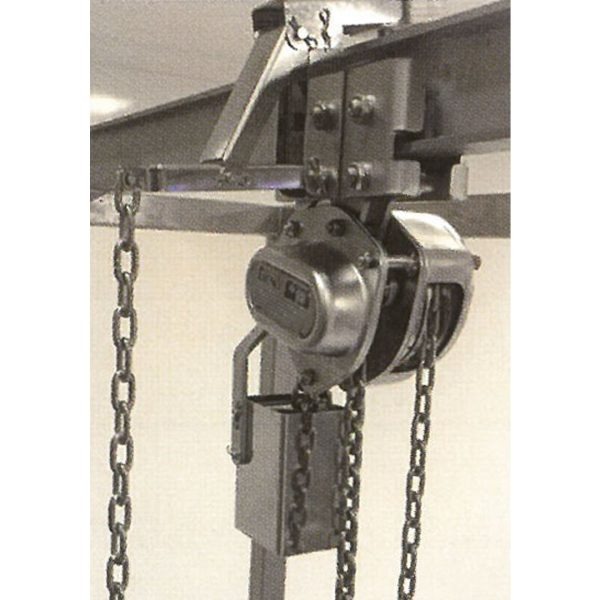

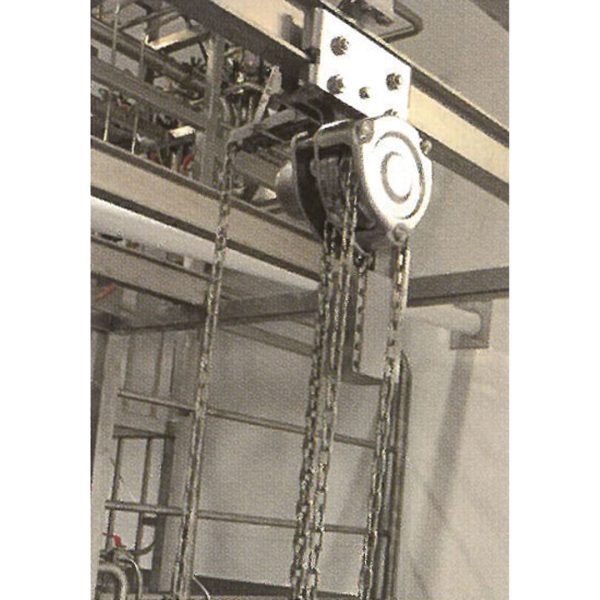

- Suitable for environments including the chemical, medicinal, and food industries where corrosion should be avoided
- This product reduces dust, making it suitable for a clean room environment
- Double brake pawl
- Surface treatment – electrolytic polishing
- Chain length is adjustable
- Load chain: SUS316L
- Hand chain: SUS316
- Covers: SUS304L
- Pin and Bush: SUS420J2

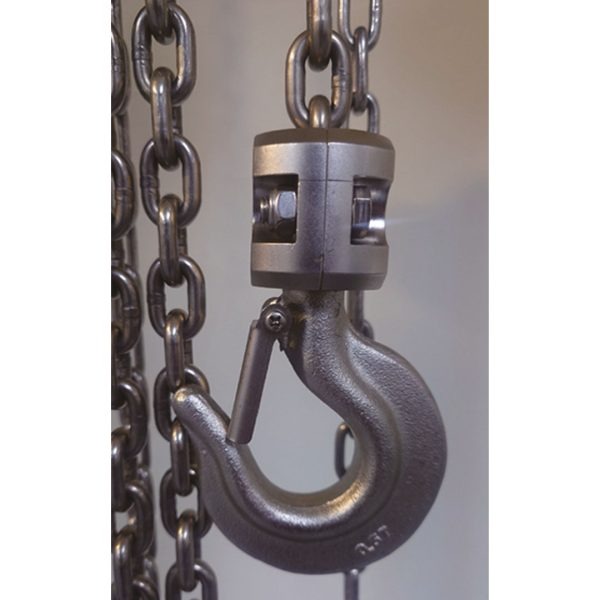

- Hook part and Sheave, Plates: SUS304
- Name Plate: SUS316

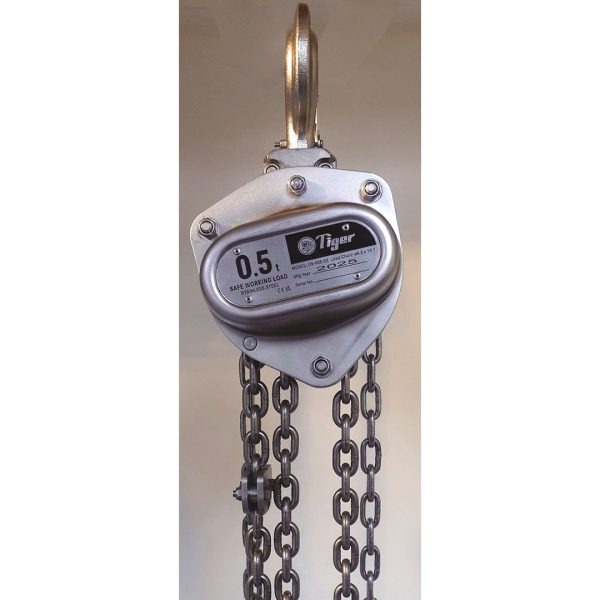

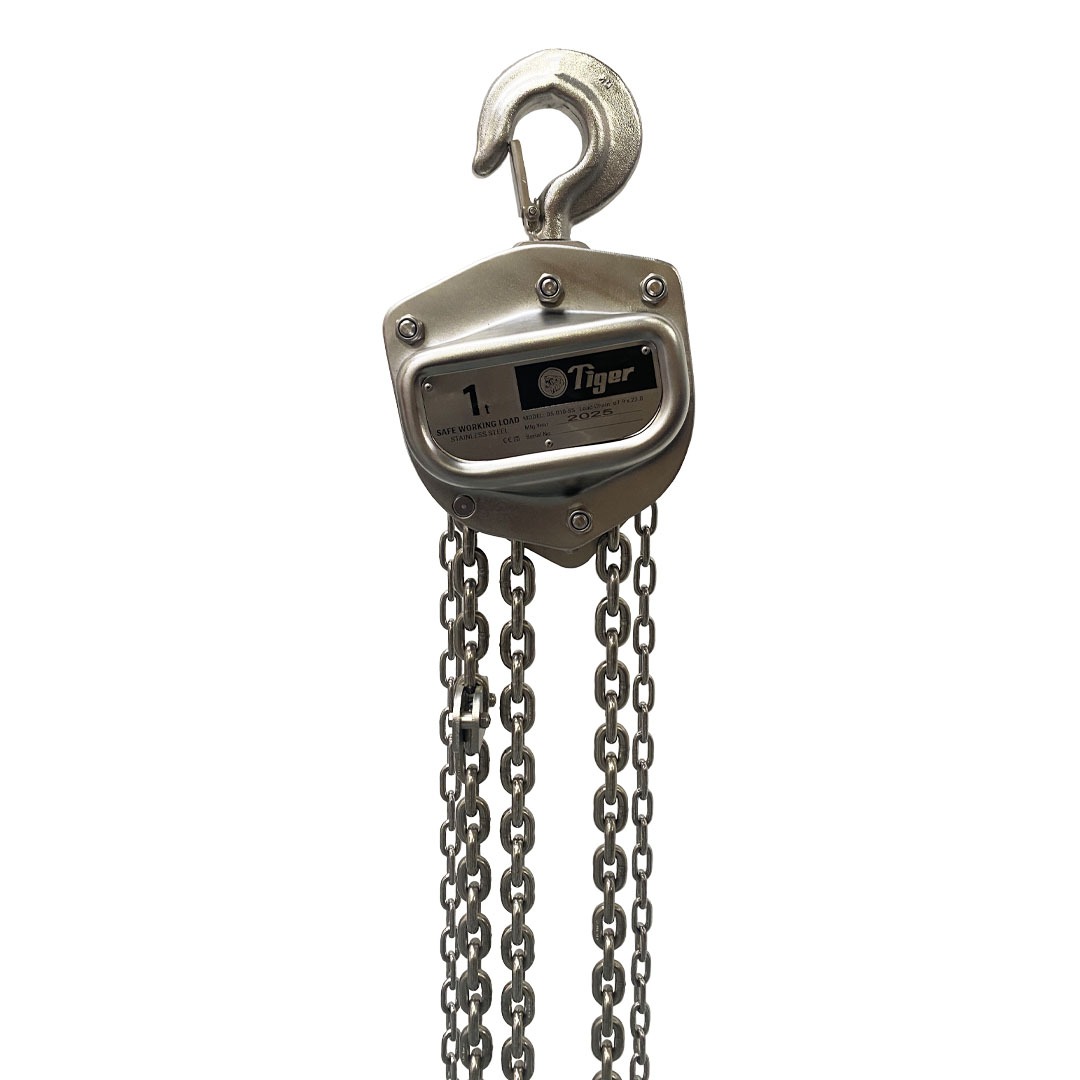

Stainless Steel Chain Block NX
| Product Code | Capacity (tonne) | Effort (kg) | Dimensions | Std. Chain Length | Load Chain Spec | No of Falls | Std. Net Weight (kg) | Technical drawing | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H (min) | L1 | L2 | W1 | W2 | D | T | Load Chain | Hand Chain | |||||||
| NX-005-SS | 0.5 | 18.0 | 355.0 | 65.0 | 85.0 | 84.5 | 62.0 | ?38.0 | 27.0 | 2.5 | 2.0 | ?6.3 | 1 | 12.5 |  |
| NX-010-SS | 1.0 | 24.0 | 425.0 | 82.5 | 110.5 | 91.8 | 72.8 | ?46.0 | 32.0 | 2.5 | 2.0 | ?7.9 | 1 | 20.5 | |
| NX-020-SS | 2.0 | 25.0 | 586.0 | 64.2 | 173.0 | 91.8 | 72.8 | ?64.0 | 51.0 | 3.0 | 2.5 | ?7.9 | 2 | 38.0 | |
| NX-030-SS | 3.0 | 30.0 | 655.0 | 75.1 | 201.0 | 95.5 | 80.5 | ?64.0 | 51.0 | 3.0 | 2.5 | ?10.0 | 2 | 50.0 | |
