Description
Product no: LHCG
- Very low headroom
- Range from 1.0t to 10.0t
- Ideal for locations where headroom is limited
- Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
- Can be chained to any height of lift to meet your exact requirements
- Chain carrier available
- Corrosion or spark resistant versions available
- Available with load limiter
- Available with beam locking device

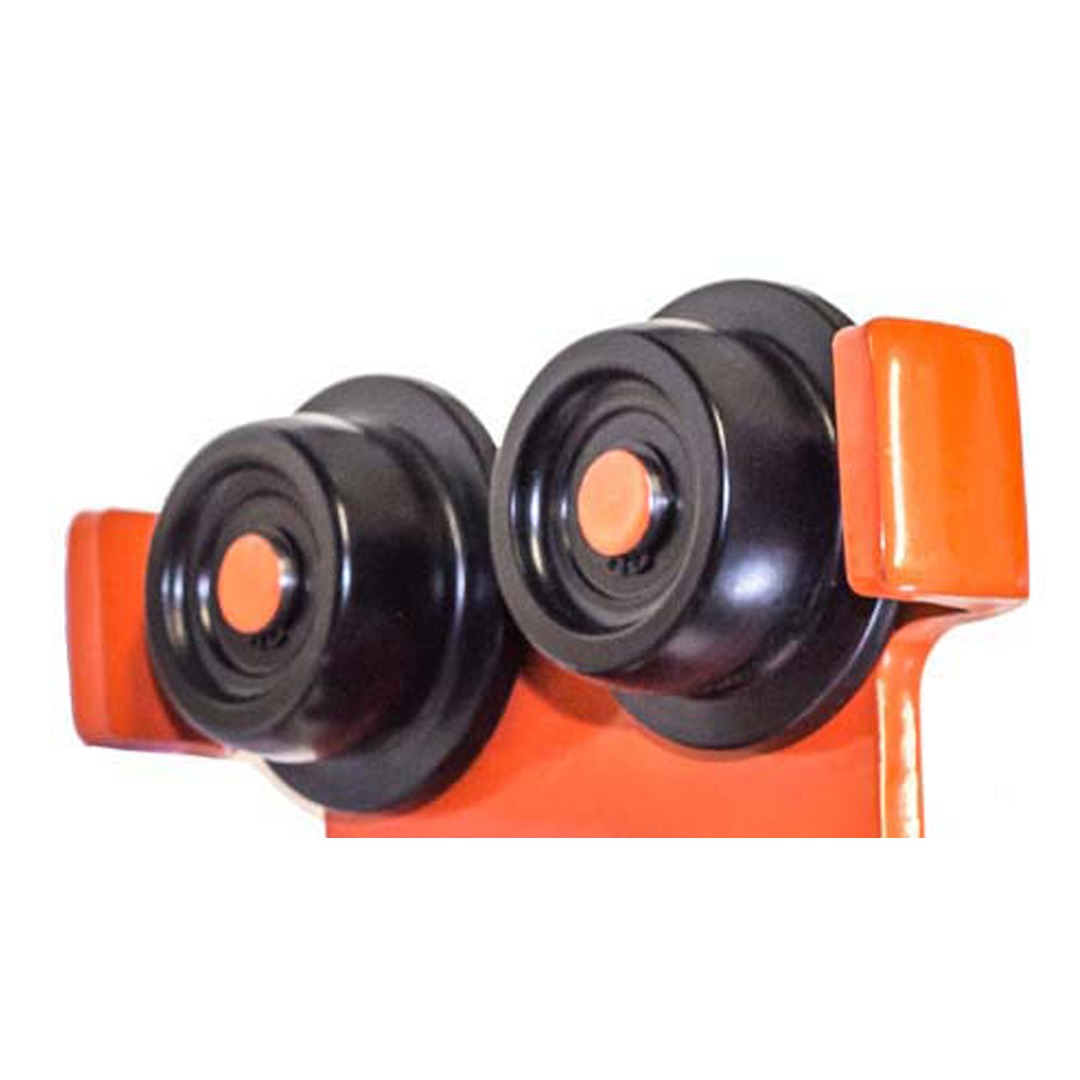

- Powder coated universal wheels suit both tapered and flat flange beams
- These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Standard Product
With Locking Device – outside of curve
With Locking Device – inside of curve

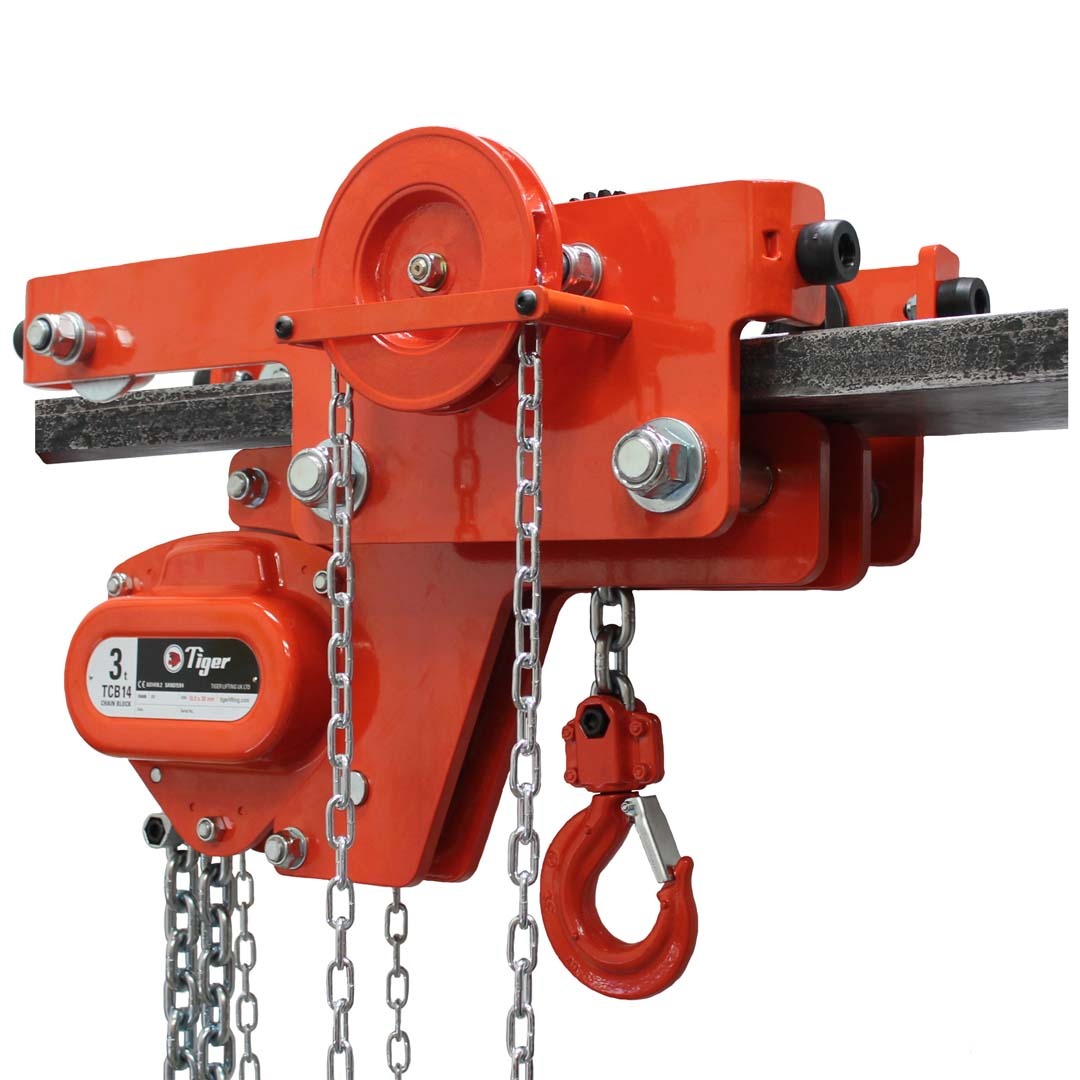

Low Headroom Combined Chain Block and Trolley
| Product Code | Capacity (tonne) | D – Track width | Minimum Curve Radius (m) | Dimensions (mm) | Load Chain | Net Weight (kg) @ std HOL range 1/range 2 |
Technical drawing | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range 1 (mm) | Range 2 (mm) | A | B | C | E | F | G | H | J | L | Diameter (mm) | No. of falls | |||||
| LHCG-0100 | 1.0 | 62-180 | 62-310 | 2.2 | 458 | 207 | 138 | 149 | 24 | 230 | 210 | 70.5 | 82 | ?6.3 | 1 | 36.5/38.1 |  |
| LHCG-0200 | 2.0 | 88-180 | 88-310 | 3.2 | 576 | 207 | 141 | 179 | 24 | 299 | 260 | 79.5 | 94 | ?8.0 | 1 | 62.6/64.4 | |
| LHCG-0300 | 3.0 | 88-180 | 88-310 | 4.0 | 698 | 209 | 153 | 221 | 32 | 341 | 305 | 96.5 | 126 | ?10.0 | 1 | 95.2/97.7 | |
| LHCG-0600 | 6.0 | 106-194 | 106-310 | 6.0 | 791 | 216 | 164 | 274 | 32 | 344 | 425 | 117 | 137 | ?10.0 | 2 | 132.1/133.7 | |
| LHCG-1000 | 10.0 | 106-320 | – | 9.0 | 873 | 283 | 243 | 377 | 45 | 364 | 550 | 118 | 151 | ?10.0 | 3 | 203.0 | |
Low Headroom Combined Chain Block and Trolley with optional locking device
| Product Code | Capacity (tonne) | D – Track width | Minimum Curve Radius (m) locking at the outside of I beam | Minimum Curve Radius (m) locking at the outside of I beam | Dimensions (mm) | Net Weight (kg) @ std HOL range 1/range 2 |
Technical drawing | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range 1 (mm) | Range 2 (mm) | A | B | C | E | F | G | H | J | L | ||||||
| LHCG-0100-K | 1.0 | 62-180 | 62-310 | 2.2 | 3.0 | 572 | 207 | 138 | 149 | 24 | 230 | 210 | 70.5 | 82 | 44.2/45.8 |  |
| LHCG-0200-K | 2.0 | 88-180 | 88-310 | 3.2 | 4.5 | 678 | 207 | 141 | 179 | 24 | 299 | 260 | 79.5 | 94 | 70.9/72.7 | |
| LHCG-0300-K | 3.0 | 88-180 | 88-310 | 4.0 | 5.5 | 814 | 209 | 153 | 221 | 32 | 341 | 305 | 96.5 | 126 | 105.4/107.9 | |
| LHCG-0600-K | 6.0 | 106-194 | 106-310 | 6.0 | 8.0 | 924 | 216 | 164 | 274 | 32 | 344 | 425 | 117 | 137 | 143.4/145.0 | |
| LHCG-1000-K | 10.0 | 106-320 | – | 9.0 | 14.0 | 1013 | 286 | 243 | 377 | 45 | 364 | 550 | 118 | 151 | 216.2 | |
