Tiger push and geared screw single bar trolleys.

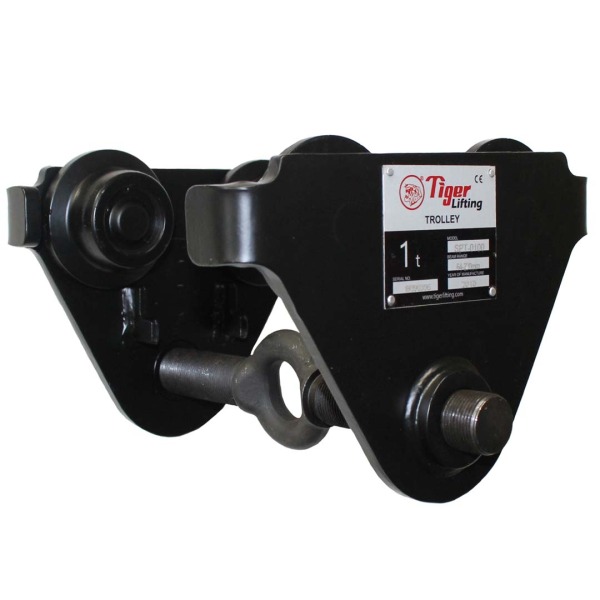

SPT – Screw Plain/Push Trolley

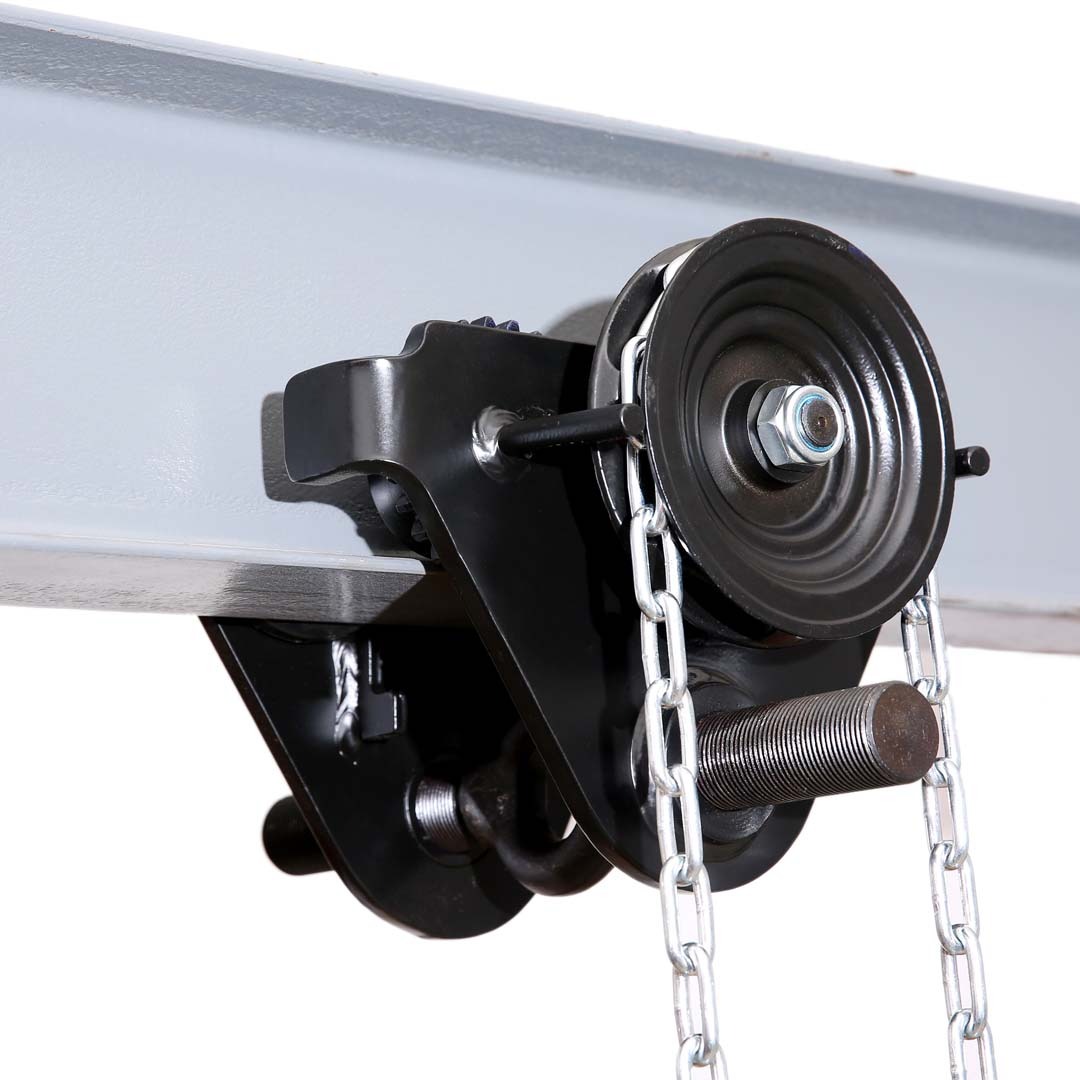

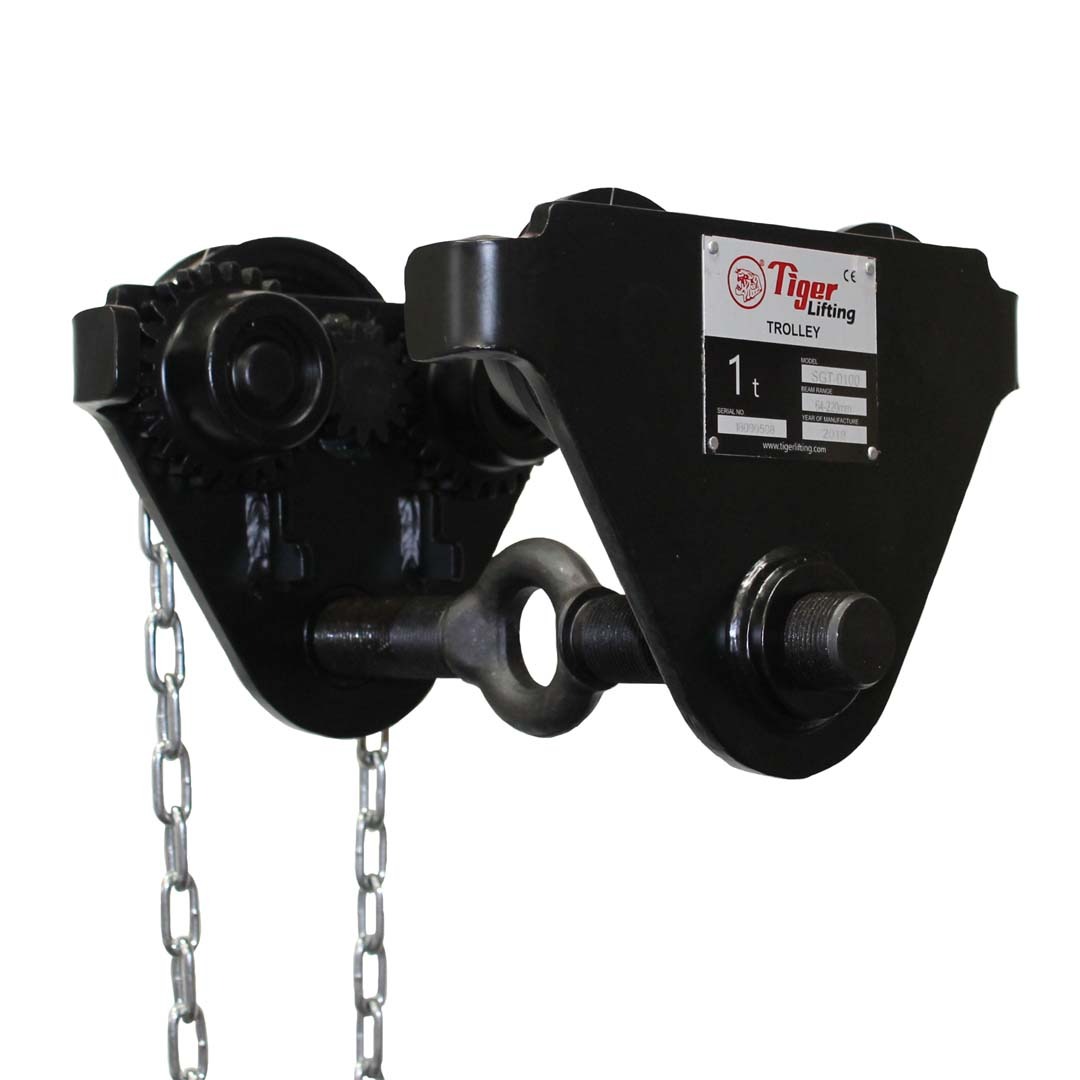

SGT – Screw Geared Trolley
These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
- Main Features
- Range from 0.5t to 5.0t
- The wheels run on sealed bearings for smoother rolling with less effort and maintenance
- Geared type with hand chain length to suit your requirements
- The 4:1 factor of safety allows for use with manual or powered hoists
- The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers

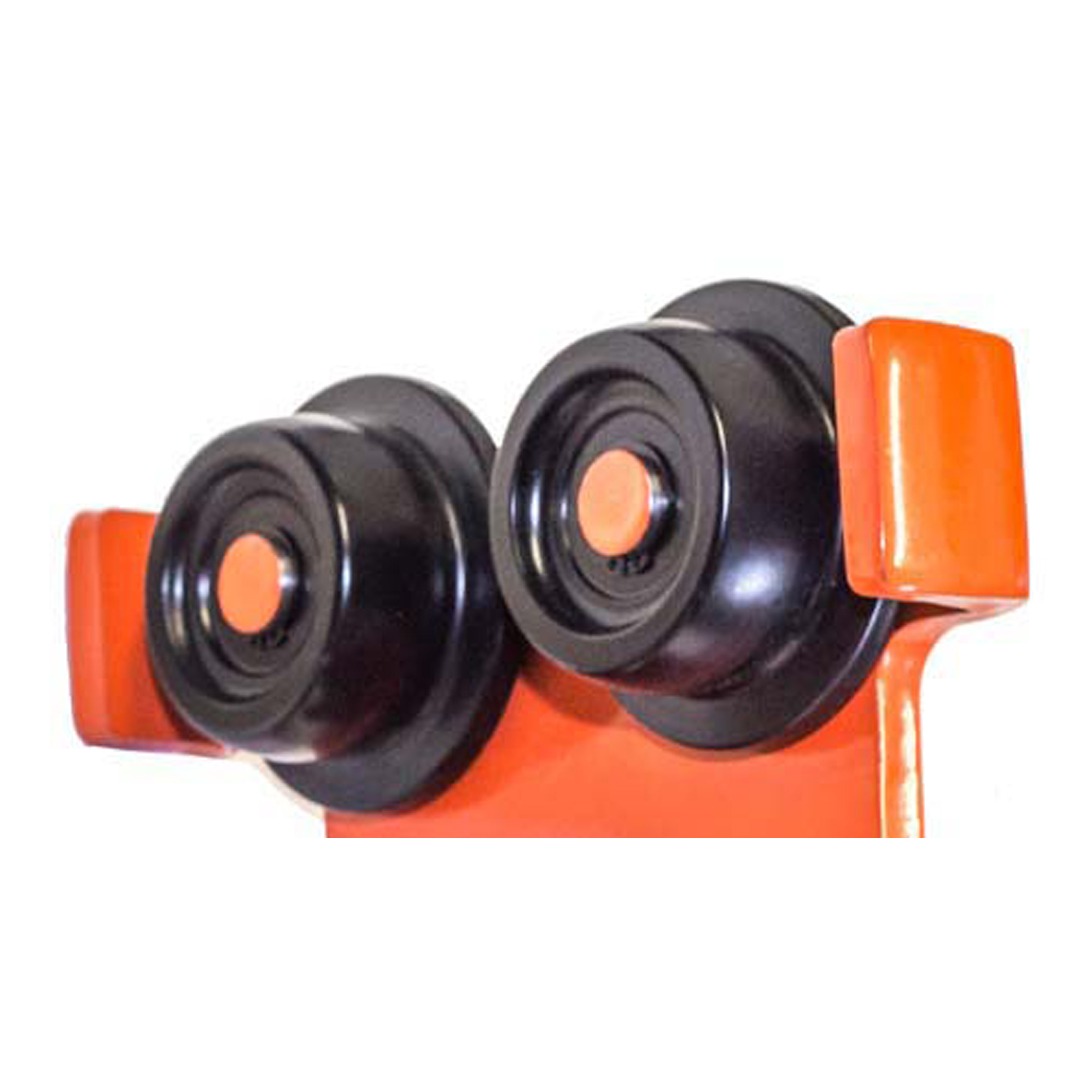

- Trolley wheels are powder coated universal wheels which suit both tapered and flat flange beams
Standard geared trolley hand chain length – 2.5m. We can change the length to suit your requirements.
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Data Table Notes:
K is the diameter of the anchor point opening.
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
Plain Screw Trolley
| Product Code | Type | Capacity (Tonne) | D – Track Width | Dimensions (mm) | Min. Curve Ratio (m) | Net Weight (kg) | Technical Drawing | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range 1 (mm) | Range 2 (mm) | A | B | C | E | F | G | H | J | K | ||||||
| SPT-0050 | Plain | 0.5 | 50-220 | 300 | 210 | 190 | 33 | 3 | 25 | TBA | 7.0 |  |
||||
| SPT-0100 | Plain | 1.0 | 64-220 | 300 | 260 | 211 | 31 | 3 | 30 | 1.0 | 10.0 | |
||||
| SPT-0200 | Plain | 2.0 | 88-220 | 310 | 310 | 236 | 32 | 3 | 40 | 1.1 | 15.5 | |
||||
| SPT-0300 | Plain | 3.0 | 102-220 | 320 | 390 | 295 | 46 | 3 | 48 | 1.3 | 26.0 | |
||||
| SPT-0500 | Plain | 5.0 | 114-220 | 330 | 450 | 334 | 47 | 3 | 60 | 1.4 | 38.0 | |
||||
Plain Geared Trolley
| Product Code | Type | Capacity (Tonne) | D – Track Width | Dimensions (mm) | Min. Curve Ratio (m) | Net Weight (kg) | Technical Drawing | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range 1 (mm) | Range 2 (mm) | A | B | C | E | F | G | H | J | K | ||||||
| SGT-0050 | Geared | 0.5 | 50-220 | 300 | 210 | 190 | 33 | 3 | 25 | TBA | 9.0 |  |
||||
| SGT-0100 | Geared | 1.0 | 64-220 | 300 | 260 | 211 | 31 | 3 | 30 | 1.0 | 13.0 | |
||||
| SGT-0200 | Geared | 2.0 | 88-220 | 310 | 310 | 236 | 32 | 3 | 40 | 1.1 | 20.5 | |
||||
| SGT-0300 | Geared | 3.0 | 102-220 | 320 | 390 | 295 | 46 | 3 | 48 | 1.3 | 30.0 | |
||||
| SGT-0500 | Geared | 5.0 | 114-220 | 330 | 450 | 334 | 47 | 3 | 60 | 1.4 | 45.0 | |
||||
