Description

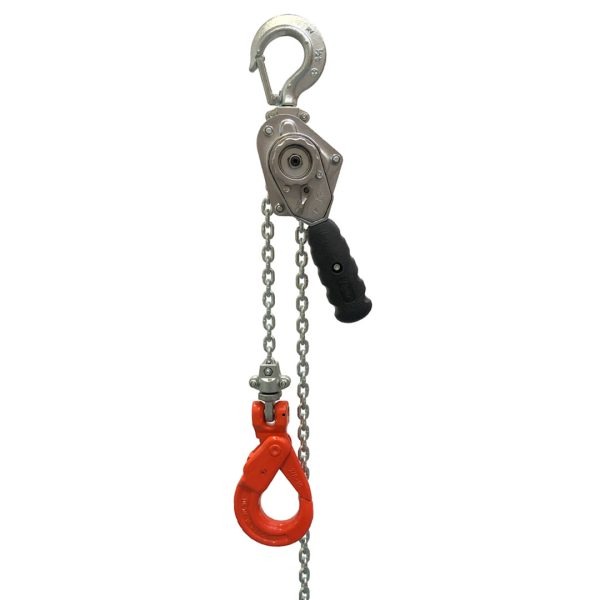

Tiger 250kg Lever Hoist (LH-0025) & 500kg Lever Hoist (LH-0050)
Rugged steel body construction yet lightweight and portable.
Product no: LH-0025/LH-0050
- 360-degree handle rotation
- Short stroke and low lever pulling effort
- Easy single-hand “freewheeling” operation
- Drop forged & heat-treated alloy hooks
- Safe reliable twin pawl mechanical brake
- Proof tested to 1.5 times rated capacity
- 5m height of lift as standard but can be chained to exact requirements

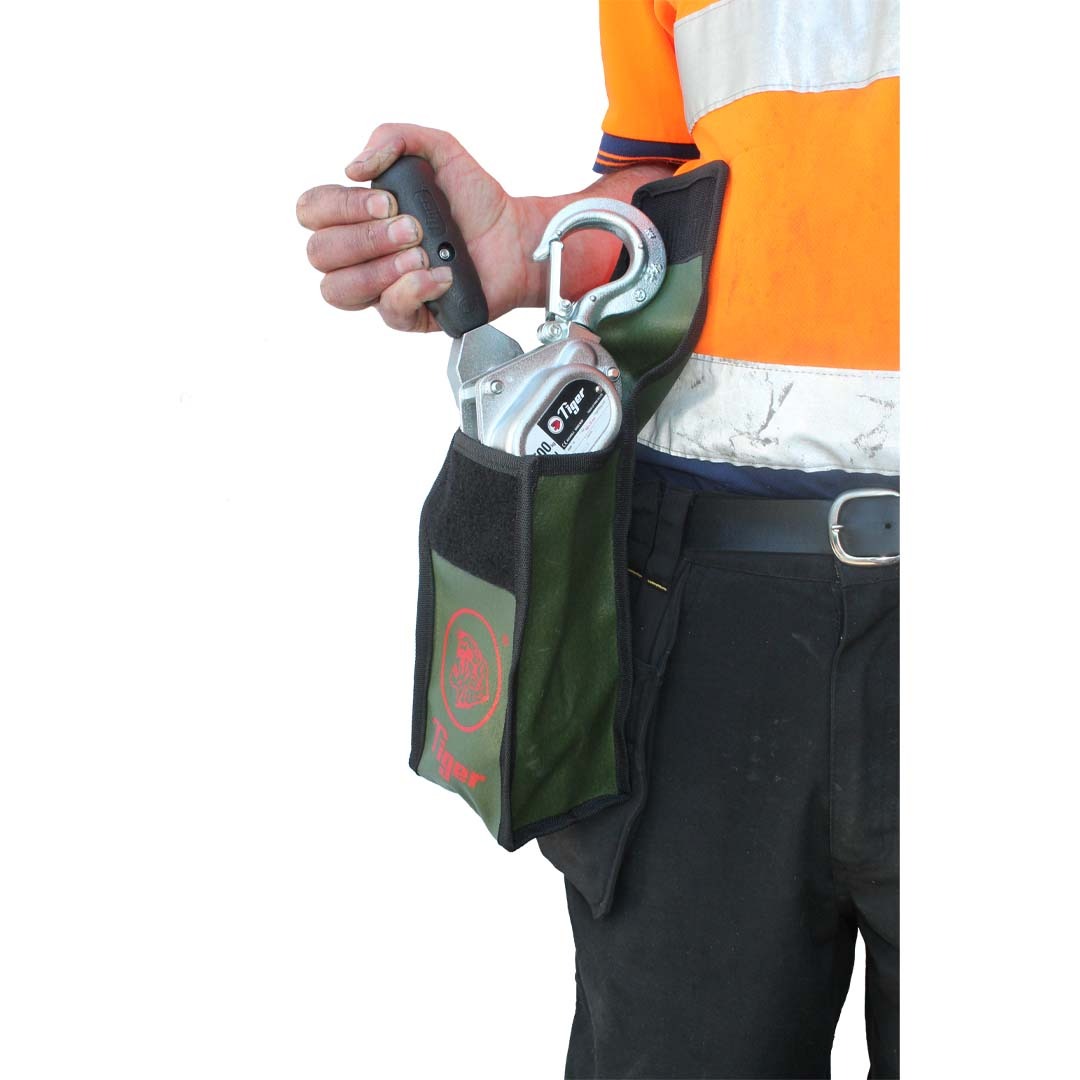

- Supplied with useful belt bags
| Product Code | Capacity (tonne) | Effort (kg) | Dimensions (mm) | Load Chain | Standard HOL (m) | Mass@ std HOL (kg) | Mass for extra metre HOL (kg) | Technical drawing | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F1 | F2 | Diameter (mm) | No. of falls | |||||||
| LH-0025 | 0.25 | 15 | 89 | 168 | 265 | 113 | 70 | 22 | 31 | ?4.0 | 1 | 1.5 | 2.9 | 0.3 |  |
| LH-0050 | 0.50 | 30 | 89 | 168 | 280 | 113 | 70 | 24 | 38 | ?4.0 | 1 | 1.5 | 2.9 | 0.3 | |
