Description

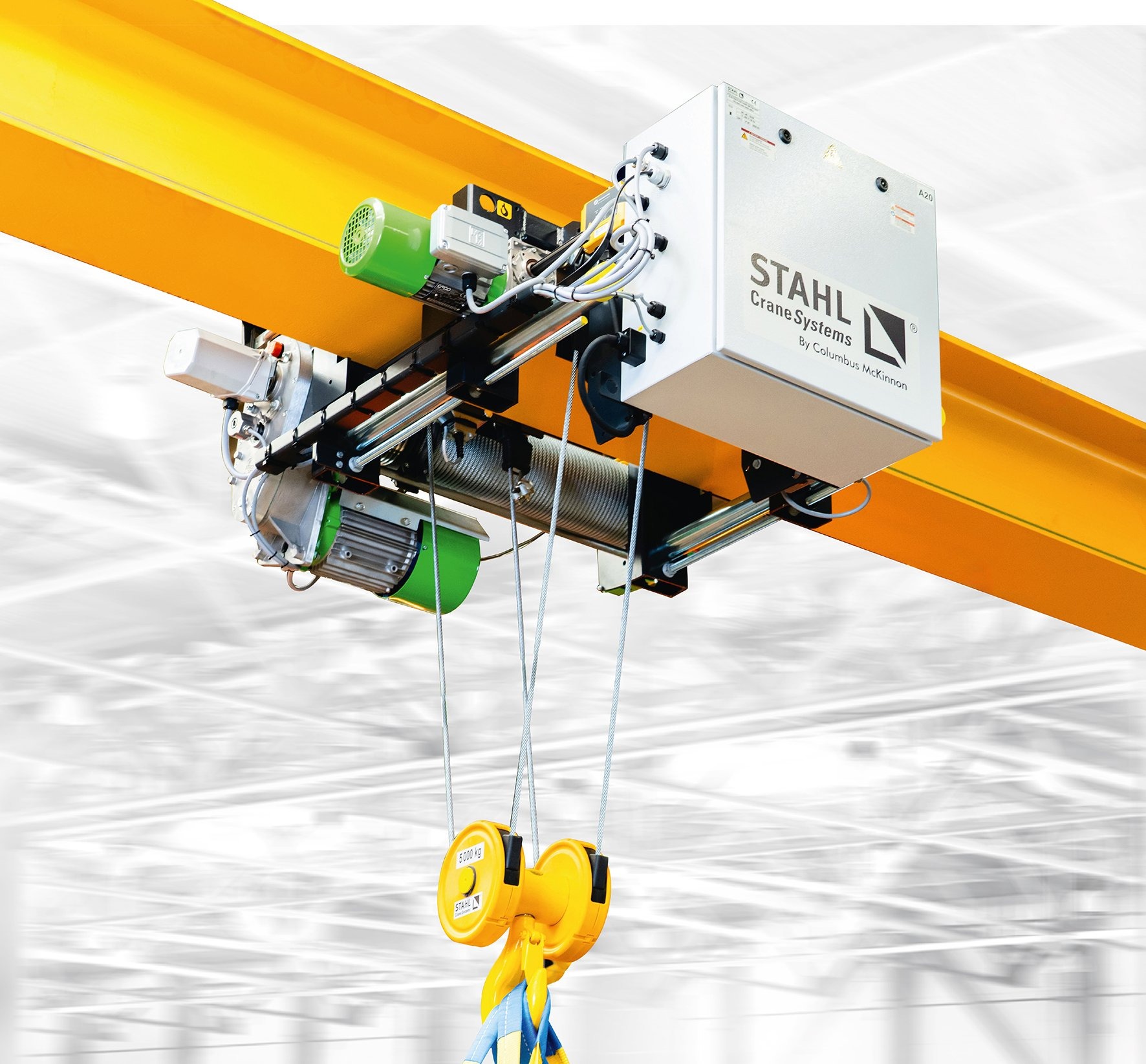

The SXD / SXF wire rope hoist from STAHL CraneSystems offers an efficient and reliable lifting solution for standard applications and provides robust technology and precise control. Thanks to its compact design, powerful safety functions and durable components, the SXD / SXF wire rope hoist is highly reliable for users, crane manufacturers and plant engineers.
• Load capacity variants from 2,000 to 10,000 kg
• Lifting speeds of up to 9 m/min
• Largely maintenance-free, low wear and long service life
• Very smooth starting and braking characteristics
• Compact design and low application dimensions
• Easy installation and maintenance
• Also available as CraneKit
An efficient and reliable lifting solution
The SXD and SXF wire rope hoists are the latest models from STAHL CraneSystems and are specially designed for lifting loads of up to 10,000 kg. They impress with their intuitive operation and lower operating costs, without compromising on proven quality.
EMAIL TO OUR SALESTEAM
The SXD pole-changing wire rope hoist from STAHL CraneSystems offers an efficient and reliable lifting solution for standard applications and features robust technology and precise control. Thanks to its compact design, powerful safety functions and durable components, the pole-changing SXD wire rope hoist is a reliable lifting device for users, crane manufacturers and plant engineers.
Compact design – optimised drive shaft
The SXD / SXF wire rope hoists impress with their optimised, compact design, which enables quick and easy installation. Thanks to their compact and lightweight construction, the available space is used to its full potential. The optimised drive shaft with adjustable flange area also allows for easy adjustments directly on site. The user-friendly operation reduces training requirements to a minimum and ensures safe operation.
EMAIL TO OUR SALESTEAM
• Load capacities from 2,000 to 10,000 kg
• Lifting speeds of up to 9 m/min
• Virtually maintenance-free, low wear,lo ng service life
• Compact design and low approach dimensions
• Easy commissioning and maintenance
• Particularly smooth start-up and braking behaviour with frequency-controlled SXF wire rope hoists
• Also available as CraneKit
ROPE GUIDING ELEMENTS
The plastic rope guide reduces friction and protects the rope. The integrated tension spring reliably prevents overwind and ensures that the rope sits firmly in the drum groove. The 360° closed rope guide ring protects against external influences, minimises contact with hard surfaces and reduces the accumulation of dust.
CONTROL & MOTOR MANAGEMENT SLE
In addition to a standard condition monitoring function, the reduced mechanical load due to the suppression of jogging operation contributes significantly to the protection of the components. This is complemented by generously dimensioned
contactors, which ensure long-lasting, safe and reliable control of the hoist.
FINGER PROTECTION SYSTEM
The finger protection system combines maximum safety with optimised rope guidance. The specially developed guide elements reliably ensure that fingers cannot get caught in the hook block or the running rope.
Overload Protection
The integrated overload protection of the wire rope hoist enables permanent electronic monitoring of the attached load. The load is precisely measured at the rope anchorage point, ensuring that the permissible load capacity is not exceeded.
Dynamic Lift System (DLS)
Thanks to the Dynamic Lift System (DLS) with Ultra-Lift, the SXF wire rope hoist offers almost twice the lifting speed at partial load, adapts precisely to the load weight and thus enables accurate, economical load handling with lower mechanical stress.
Magnetek Frequency Converter IMPULSE·G+ MINI
To enable intelligent lifting operations, Magnetek’s IMPULSE® frequency converters continuously monitor all environmental and functional parameters of the hoist on the SXF wire rope hoist.
Safety Brake System
The safety brake system combines continuous speed and load monitoring, adapting continuously and automatically to the conditions. An integrated rotary encoder precisely detects the direction of rotation and speed of the load.
SMC 4 Multicontroller
The SMC 4 Multicontroller is an electronic control and monitoring device for hoists with pole-changing motors or frequency-controlled drives. It also ensures continuous monitoring of the hoist’s operational status.
• Simplicity and Reliability
The hoist focuses on providing the essential functions for general load transport in various industries – without complicated settings for numerous functions or options.
• Optimised Design
The hoist is tailor-made for loads up to 10 tonnes and is ideal for standard lifting applications, simple loading and unloading, and manufacturing processes with high speeds but low work cycles.
• Fast Availability
The hoist is equipped with the most common options and can be delivered at short notice thanks to local suppliers, available standard components and widely available raw materials.
