Hoist Chains Type T

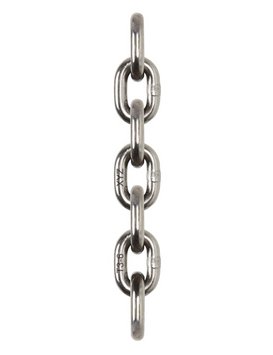

The hoist chains TWN 0062 (T type) are used as load chains predominantly in manually operated hoists, e.g. in TM Chain Blocks and TM Lever Blocks. They are also used in motor-driven electric chain hoists that are used as maintenance hoists in wind turbines as maintenance hoists. The hoist chains are tempered, galvanized and comply with the DIN EN 818-7.
Find more information about Surface Hardness, Nominal Stress, Fatigue Strengt, Chemical Composition, Operating Temperatures and more in our Catalogue “THIELE Hoist Chains”.
| Trade Size | Article-No.
Execution |
Nom. Size
|
Pitch | Width
|
Working Load Limit [t] max. |
Weight app. [kg/m] |
Measuring Length
|
|||||
| Bright polished | Electro galvanized | dn
[mm] |
Tol. ±
[mm] |
pn
[mm] |
Tol. ±
[mm] |
w1
[mm min.] |
w2
[mm max.] |
11 x p
[mm] |
Tol. ±
[mm] |
|||
| 4 x 12 | – | – | 4.0 | +0,20 / -0,20 | 12 | +0,15 / -0,10 | 4.80 | 13.60 | 0.50 | 0.35 | 132.0 | +0,40 / -0,20 |
| 4,2 x 12,2 | – | – | 4.2 | +0,10 / -0,20 | 12 | +0,15 / -0,10 | 4.80 | 13.70 | 0.50 | 0.39 | 134.2 | +0,40 / -0,20 |
| 5 x 15 | – | F09016 | 5.0 | +0,20 / -0,20 | 15 | +0,20 / -0,10 | 6.00 | 17.00 | 0.80 | 0.55 | 165.0 | +0,50 / -0,30 |
| 5,3 x 15,2 | – | – | 5.3 | +0,10 / -0,20 | 15 | +0,20 / -0,10 | 5.90 | 16.90 | 0.80 | 0.63 | 167.2 | +0,50 / -0,30 |
| 6 x 18 | – | F09026 | 6.0 | +0,20 / -0,20 | 18 | +0,25 / -0,10 | 7.20 | 20.40 | 1.10 | 0.79 | 198.0 | +0,60 / -0,30 |
| 7 x 211) | F09030 | F09031 | 7.0 | +0,10 / -0,28 | 21 | +0,30 / -0,00 | 8.40 | 23.40 | 1.50 | 1.08 | 231.0 | +0,70 / -0,00 |
| 7 x 22 | – | F09036 | 7.0 | +0,30 / -0,30 | 22 | +0,30 / -0,15 | 8.40 | 23.80 | 1.50 | 1.06 | 242.0 | +0,80 / -0,40 |
| 7,4 x 21,2 | – | – | 7.4 | +0,10 / -0,30 | 21 | +0,30 / -0,15 | 8.40 | 23.80 | 1.50 | 1.23 | 233.2 | +1,70 / -0,70 |
| 8 x 24 | – | F09046 | 8.0 | +0,30 / -0,30 | 24 | +0,30 / -0,15 | 10.20 | 27.20 | 2.00 | 1.41 | 264.0 | +0,80 / -0,40 |
| 9 x 271) | F09050 | F09051 | 9.0 | +0,10 / -0,40 | 27 | +0,25 / -0,10 | 10.80 | 30.40 | 2.50 | 1.79 | 297.0 | +0,70 / -0,30 |
| 10 x 30 | – | F09056 | 10.0 | +0,40 / -0,40 | 30 | +0,40 / -0,20 | 12.00 | 34.00 | 3.20 | 2.21 | 330.0 | +1,00 / -0,50 |
| 11 x 311) | F09060 | F09061 | 11.0 | +0,30 / -0,40 | 31 | +0,30 / -0,15 | 13.20 | 36.50 | 3.80 | 2.75 | 341.0 | +0,90 / -0,30 |
| 13 x 36 1) | F09065 | F09066 | 13.0 | +0,10 / -0,50 | 36 | +0,35 / -0,15 | 15.20 | 42.90 | 5.30 | 3.87 | 396.0 | +1,10 / -0,20 |
| 16 x 45 1) | F09070 | F09071 | 16.0 | +0,30 / -0,60 | 45 | +0,45 / -0,25 | 18.20 | 52.80 | 8.00 | 5.82 | 495.0 | +1,40 / -0,50 |
| 18 x 50 | F09075 | F09076 | 18.0 | +0,90 / -0,90 | 50 | +0,65 / -0,35 | 21.60 | 61.20 | 10.00 | 7.40 | 550.0 | +1,75 / -0,85 |
| 22 x 66 1) | F09080 | F09081 | 22.0 | +0,80 / -1,10 | 66 | +0,65 / -0,35 | 27.00 | 75.00 | 15.00 | 10.70 | 726.0 | +2,00 / -0,70 |
| 31,5 x 901)2) | F09085 | F09086 | 31.5 | +1,60 / -1,60 | 90 | +1,20 / -0,60 | 37.80 | 107.10 | 31.50 | 22.40 | 990.0 | +3,20 / -1,60 |
| 1) Limited tolerances. Also complies with RAG 726 300. 2) Similar to EN 818-7 |
||||||||||||
