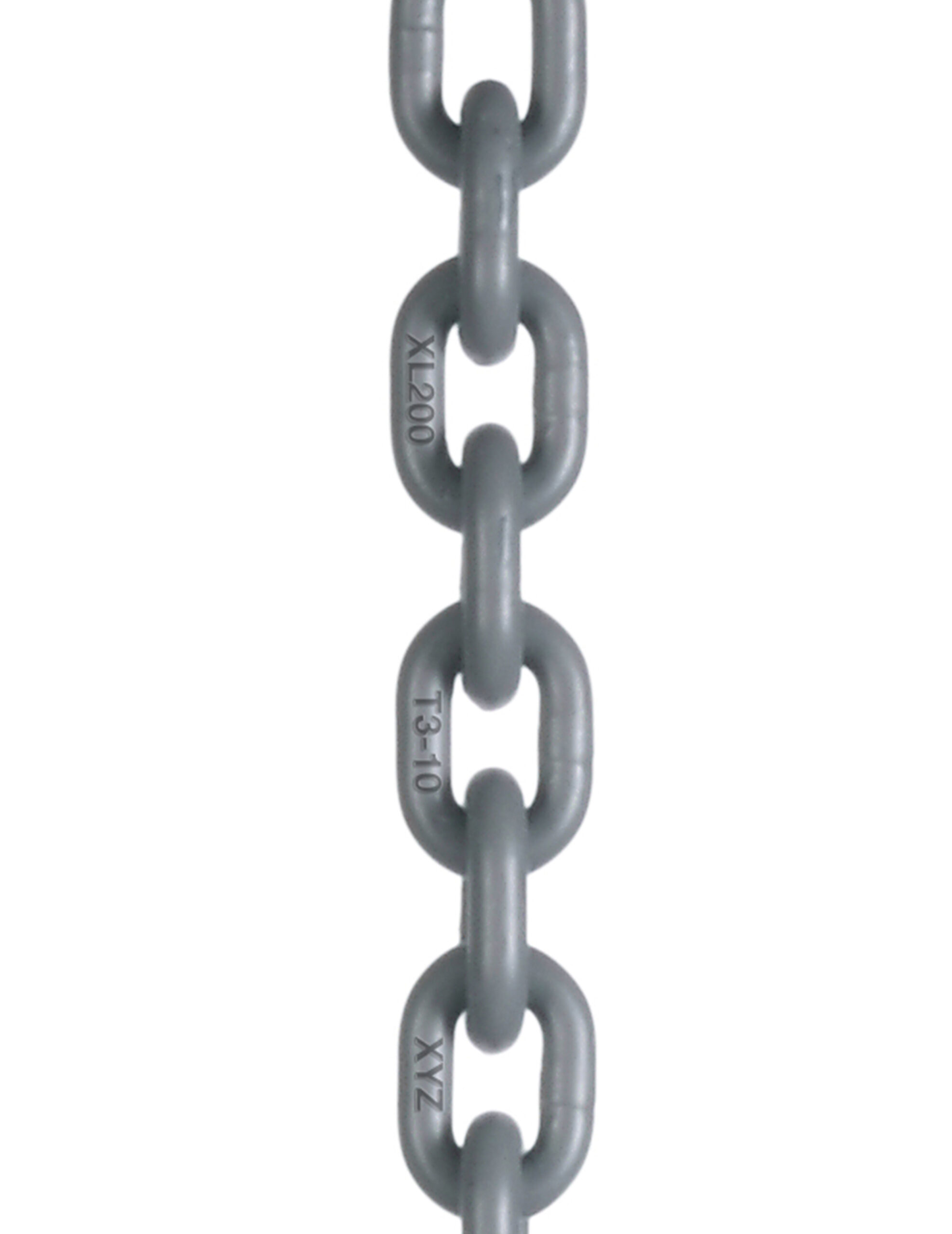

Description
| Trade Size | Article-No. | Working Load Limit [t] |
Nom. Size
dn [mm] |
Pitch
pn [mm] |
Inside Width
w3 [mm] |
Outside Width
w2 [mm] |
Weight app. [kg/m] |
CAD
STEP |
CAD
IGES |
| 6-10 | F01616 | 1.40 | 6 | 18 | 8.40 | 22.20 | 0.80 | Download | Download |
| 7-10 | F01621 | 1.95 | 7 | 21 | 9.53 | 25.90 | 1.10 | Download | Download |
| 8-10 | F01617 | 2.60 | 8 | 24 | 11.30 | 29.60 | 1.50 | Download | Download |
| 10-10 | F01618 | 4.00 | 10 | 30 | 13.40 | 37.00 | 2.30 | Download | Download |
| 13-10 | F01619 | 6.80 | 13 | 39 | 18.00 | 48.10 | 3.90 | Download | Download |
| 16-10 | F01620 | 10.30 | 16 | 48 | 21.40 | 59.20 | 5.80 | Download | Download |
| 18-10 | F01642 | 12.50 | 18 | 54 | 24.10 | 66.60 | 7.40 | Download | Download |
