Description

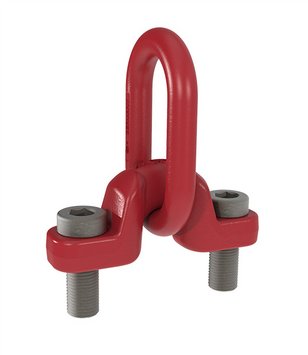

Screw-type Lifting Points
The screw-on lifting points TWN 0122 are predominantly used for the transportation of heavy moulds, tools, dies, machine elements and steel constructions. The intermediate links allow an easy assembling with other lifting components.
The manufacturing and testing requirements comply with the DIN EN 1677-1
| Screw Size
dg [mm] |
Article-No. | Working Load Limit [t] |
Thread Length
lg [mm] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||||||
| e | f | a | b | l | d | h | t | c | SW | |||||||
| M16 | F35070 | 3.15 | 25 | 112 | 57 | 90 | 40 | 130 | 18 | 55 | 85 | 38 | 12 | 1.47 | Download | Download |
| M20 | F35075 | 5.30 | 36 | 149 | 80 | 115 | 50 | 165 | 22 | 69 | 115 | 45 | 14 | 2.70 | Download | Download |
| M30 | F35080 | 8.00 | 50 | 183 | 93 | 150 | 65 | 212 | 26 | 89 | 140 | 55 | 22 | 5.94 | Download | Download |
| M36 | F35095 | 15.00 | 53 | 217 | 105 | 175 | 80 | 255 | 36 | 112 | 160 | 72 | 27 | 11.08 | Download | Download |
| M42 | F35098 | 21.20 | 67 | 262 | 132 | 200 | 100 | 295 | 45 | 130 | 200 | 90 | 32 | 20.09 | Download | Download |
| M45 | F35101 | 25.00 | 67 | 262 | 132 | 200 | 100 | 295 | 45 | 130 | 200 | 90 | 32 | 20.55 | Download | Download |
| M56 | F35102 | 31.50 | 88 | 336 | 193 | 230 | 110 | 330 | 48 | 143 | 270 | 100 | 36 | 31.60 | Download | Download |
| M56 | F35285 | 36.00 | 88 | 336 | 193 | 230 | 110 | 330 | 48 | 143 | 270 | 100 | 36 | 31.60 | Download | Download |
