Description
Magnet Chain Slings

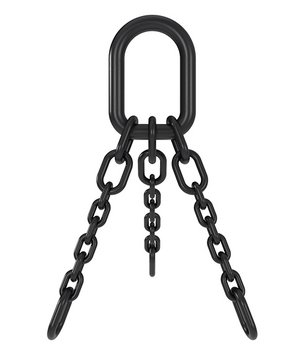

The grade 80 magnet chain slings TWN 0601 are welded 3-leg chain slings with a D-link at the top and are used for a fixed connection to electro magnets. They enable the lifting and transport of magnetic material, such as steel scrap.
The design of the magnetic sling chains is based on ASTM A906/A906M. The dimensions, the working load limit and the manufacturing and testing requirements of the chain slings are based on the ASTM A391/A391M.
The dimensions of the connecting or intermediate links type B comply with the DIN 5688-3.
| Trade Size
|
Article-No. | Working Load Limit 0° < ? ? 30° [t] max. |
Working Length
e [mm]
|
D-Link
[mm] |
Master-Link
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| ? = 90°
? = 0° |
? = 60°
? = 30° |
d1 | t1 | b1 | d2 | t2 | b2 | ||||||
| 16-8 | F08945 | 21.30 | 828 | 752 | 45 | 260 | 155 | 20 | 90 | 45 | 23.70 | Download | Download |
| 20-8 | F08946 | 33.40 | 940 | 849 | 51 | 260 | 155 | 22 | 100 | 50 | 35.50 | Download | Download |
| 22-8 | F08947 | 40.25 | 1,002 | 909 | 57 | 300 | 165 | 26 | 120 | 60 | 46.00 | Download | Download |
| 26-8 | F08948 | 56.25 | 1,126 | 1,015 | 57 | 300 | 165 | 32 | 140 | 70 | 64.00 | Download | Download |
| 32-8 | F08961 | 85.20 | 1,362 | 1,224 | 63 | 330 | 165 | 40 | 180 | 90 | 109.00 | Download | Download |
