Description

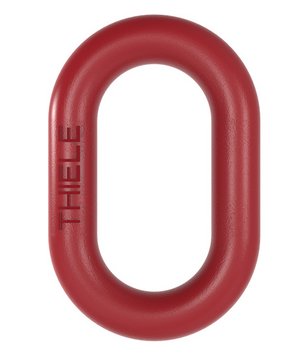

Intermediate Links Type B
The grade 80 intermediate links TWN 0795 are used to assemble chain slings. The dimensions comply with the DIN 5688-3 and enable the use of connecting links, e.g. a THI-LOK® TWN 1320.
The manufacturing and testing requirements comply with the DIN EN 1677 parts 1 and 4.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||
| d | t | b | ||||||
| B8 | F122880 | 1.12 | 8 | 36 | 18 | 0.05 | Download | Download |
| B10 | F122890 | 2.00 | 10 | 46 | 23 | 0.09 | Download | Download |
| B13 | F122930 | 3.15 | 13 | 60 | 30 | 0.20 | Download | Download |
| B16 | F122970 | 5.30 | 16 | 70 | 35 | 0.36 | Download | Download |
| B18 | F123010 | 6.70 | 18 | 85 | 40 | 0.54 | Download | Download |
| B20 | F123030 | 8.00 | 20 | 90 | 45 | 0.73 | Download | Download |
| B22 | F123070 | 10.00 | 22 | 100 | 50 | 0.97 | Download | Download |
| B26 | F123090 | 12.50 | 26 | 120 | 60 | 1.60 | Download | Download |
| B28 | F123190 | 15.00 | 28 | 130 | 65 | 1.90 | Download | Download |
| B32 | F123110 | 21.20 | 32 | 140 | 70 | 2.90 | Download | Download |
| B36 | F123130 | 25.00 | 36 | 160 | 80 | 4.20 | Download | Download |
| B40 | F123150 | 31.50 | 40 | 180 | 90 | 5.80 | Download | Download |
| B45 | F123170 | 40.00 | 45 | 200 | 100 | 8.20 | Download | Download |
| B50 | F123210 | 50.00 | 50 | 220 | 110 | 11.00 | Download | Download |
| B56 | F123230 | 63.00 | 56 | 260 | 130 | 16.00 | Download | Download |
| B63 | F123270 | 80.00 | 63 | 280 | 140 | 22.00 | Download | Download |
| B70 | F123290 | 100.00 | 70 | 320 | 160 | 31.00 | Download | Download |
| B80 | F123300 | 125.00 | 80 | 360 | 180 | 46.50 | Download | Download |
