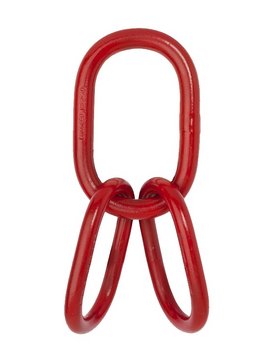

Offshore Master Link Assemblies for Wire Rope Slings
The grade 80 master link assemblies TWN 0797 are used to assemble 3- and 4-leg wire rope slings for offshore applications. The extra-large intermediate links enable easy assembly of the sling ropes. The dimensions comply to the DIN 5688-3. The assemblies are DNV-type approved.
The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4.
| Trade Size
|
Article-No. | Working Load Limit (ß = 45°) SF= 1:4 [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||
| e | d1 | t1 | b | d2 | t2 | b2 | ||||||
| 26/22 | F0797268 | 7.90 | 340 | 26 | 180 | 100 | 22 | 160 | 90 | 5.40 | Download | Download |
| 32/26 | F0797328 | 11.30 | 410 | 32 | 230 | 125 | 26 | 180 | 100 | 9.10 | Download | Download |
| 36/32 | F0797368 | 16.00 | 480 | 36 | 250 | 140 | 32 | 230 | 125 | 15.10 | Download | Download |
| 45/36 | F0797458 | 22.60 | 570 | 45 | 320 | 175 | 36 | 250 | 140 | 25.00 | Download | Download |
| 50/45 | F0797508 | 26.80 | 660 | 50 | 340 | 190 | 45 | 320 | 175 | 42.00 | Download | Download |
| 56/50 | F0797568 | 40.00 | 720 | 56 | 380 | 210 | 50 | 340 | 190 | 57.00 | Download | Download |
| 63/56 | F0797638 | 50.00 | 810 | 63 | 430 | 240 | 56 | 380 | 210 | 79.00 | Download | Download |
| The load capacities, manufacturing and testing requirements comply with the DNV-ST-E271 and some exceed the requirements of the DIN EN 1677-1 and DIN EN 1677-4. | ||||||||||||
