Clevis Self-Locking Hooks

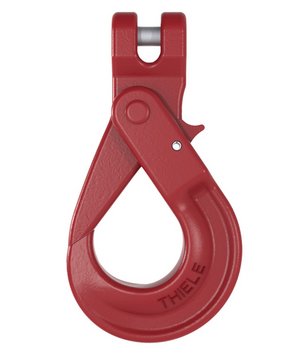

The grade 80 clevis self-locking hooks TWN 0799 are used to assemble chain slings and are often used in the construction industry. The clevis design enables the direct attachment to the lifting chain. The hooks lock automatically when under load and may only be reopened manually if not under load anymore.
The self-locking hooks comply with the DIN EN 1677-3.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||||
| a | b | c | d | e | g | h | l | ||||||
| 6-8 | Z07279 | 1.12 | 7 | 33 | 18 | 21.5 | 98 | 28 | 22 | 135 | 0.57 | Download | Download |
| 8-8 | Z07280 | 2.00 | 9 | 39 | 23 | 23 | 121 | 33 | 25 | 164 | 0.91 | Download | Download |
| 10-8 | Z07281 | 3.15 | 13 | 47 | 27 | 27 | 150 | 45 | 34 | 204 | 1.72 | Download | Download |
| 13-8 | Z07282 | 5.30 | 15.5 | 56 | 35 | 35 | 187 | 54 | 40 | 253 | 3.33 | Download | Download |
| 16-8 | Z07296 | 8.00 | 18 | 76 | 41 | 41 | 220 | 67 | 50 | 305 | 6.20 | Download | Download |
| 18/20-8 | F0922065 | 12.50 | 24 | 82 | 48 | 48 | 247 | 74 | 53 | 336 | 9.15 | Download | Download |
