Description
Swivels

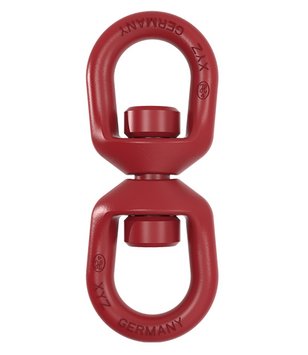

The grade 80 swivels TWN 0845 are used to assemble chain slings. The swivels enable the chain strands to be aligned without twisting. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s
TWN 1320.
The manufacturing and testing requirements comply with the DIN EN 1677-1.
| Trade Size
|
Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | d | f | b | ||||||
| 6-8 | F34000 | 1.12 | 108 | 10 | 27 | 30 | 0.33 | Download | Download |
| 8-8 | F34010 | 2.00 | 168 | 16 | 44 | 44 | 1.33 | Download | Download |
| 10-8 | F34020 | 3.15 | 168 | 16 | 44 | 44 | 1.33 | Download | Download |
| 13-8 | F34030 | 5.30 | 184 | 19 | 46 | 51 | 2.10 | Download | Download |
| 16-8 | F34040 | 8.00 | 252 | 25 | 66 | 64 | 4.45 | Download | Download |
