Description

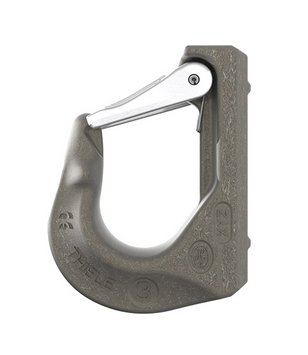

Weld-on Hooks
The weld-on hooks TWN 0850/1 are primarily welded to earth-moving machines, buckets, shovels and traverses for lifting, moving and securing loads. The forged safety latches prevent unintentional detachment from the load.
The manufacturing and testing requirements are based on the DGUV testing principle GS-OA 15-03.
| Trade Size | Article-No.
self-coloured |
Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| a | c | g | b | h | d | ||||||
| 1 | F32751 | 1.12 | 94 | 24 | 26 | 77 | 24 | 85 | 0.52 | Download | Download |
| 2 | F32752 | 2.00 | 120 | 30 | 33 | 97 | 28 | 107.5 | 0.84 | Download | Download |
