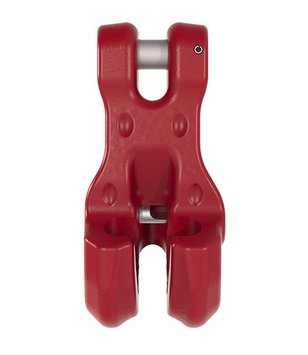

TWN 0851/1

The grade 80 clevis shortening claws with safety pin TWN 0851/1 are used to adjust the strand lengths of chain slings, lifting and lashing chains. The clevis design enables the direct attachment to the lifting chain. The safety pin prevents unintentional detachment of the chain. The manufacturing and testing requirements comply with the DIN EN 1677-1 and DIN 5692. The shortening claws have been tested in interaction with lifting chain. The chain pockets ensure a particularly tight fit for the inserted chain link. The safety bolt enables the use in lashing chains according to the DIN EN 12195-3.

Category: Brand:

Description

Clevis Shortening Claws with Safety Pin

The grade 80 clevis shortening claws with safety pin TWN 0851/1 are used to adjust the strand lengths of chain slings, lifting and lashing chains. The clevis design enables the direct attachment to the lifting chain. The safety pin prevents unintentional detachment of the chain. The manufacturing and testing requirements comply with the DIN EN 1677-1 and DIN 5692. The shortening claws have been tested in interaction with lifting chain. The chain pockets ensure a particularly tight fit for the inserted chain link. The safety bolt enables the use in lashing chains according to the DIN EN 12195-3.

Trade Size Article-No. Working
Load Limit

[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD

STEP

CAD

IGES

e a b l
6-8 F349101 1.12 51 27 37 78 0.25 Download Download
8-8 F349201 2.00 65 34 46 100 0.50 Download Download
10-8 F349301 3.15 81 43 56 124 0.93 Download Download
13-8 F349401 5.30 106 56 73 162 2.03 Download Download
16-8 F349501 8.00 130 68 88 193 3.60 Download Download
20-8* F349601 12.50 161 85 109 246 6.00 Download Download
22-8* F349701 15.00 177 94 120 271 8.00 Download Download
26-8 F349801 21.20 196 109 135 307 13.20 Download Download
32-8 F349901 31.50 240 135 166 376 24.42 Download Download
*On request
